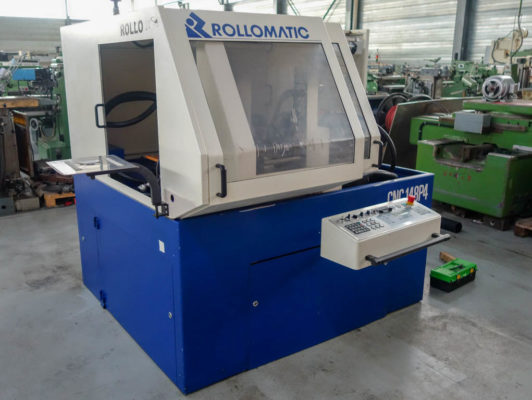

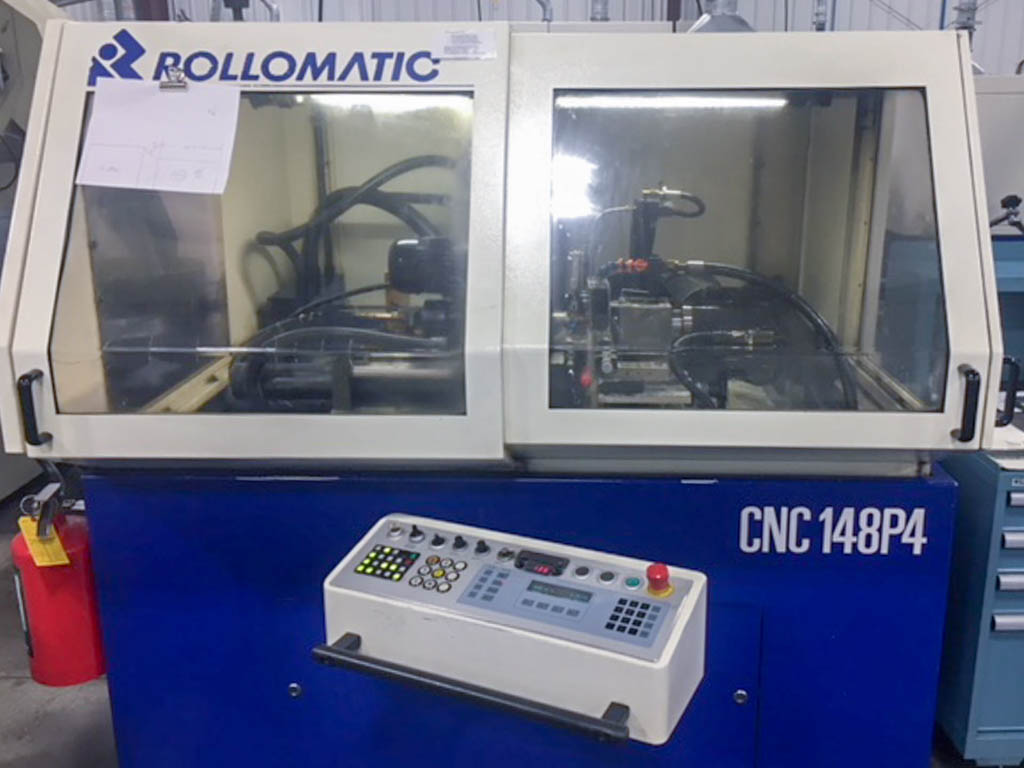

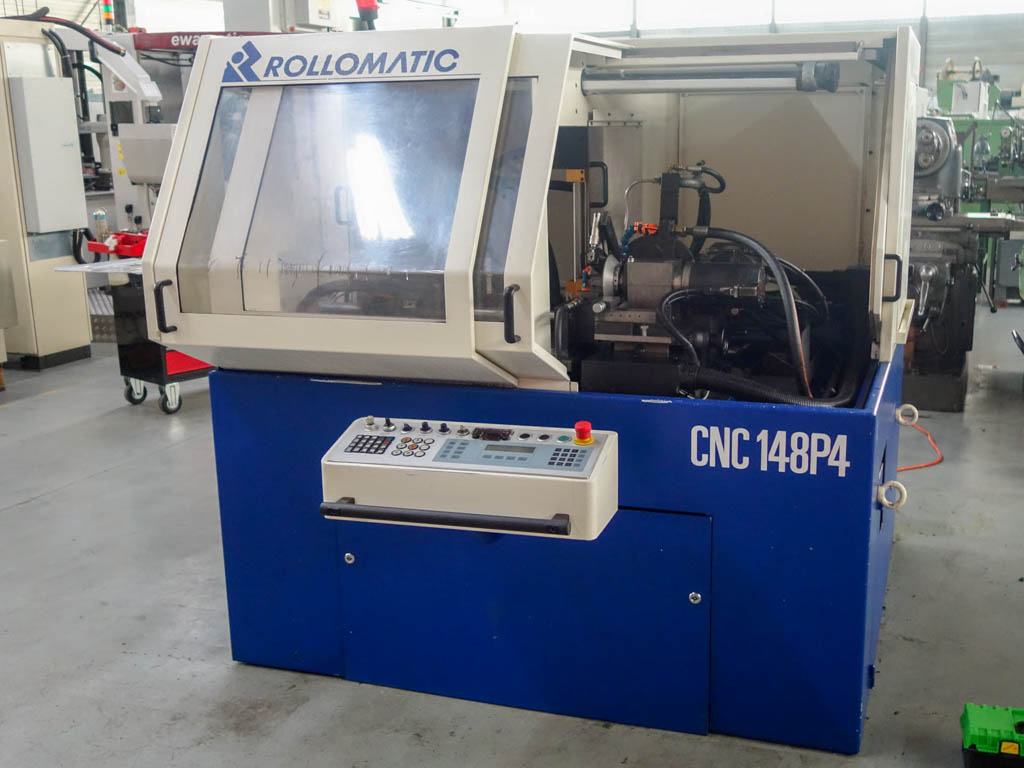

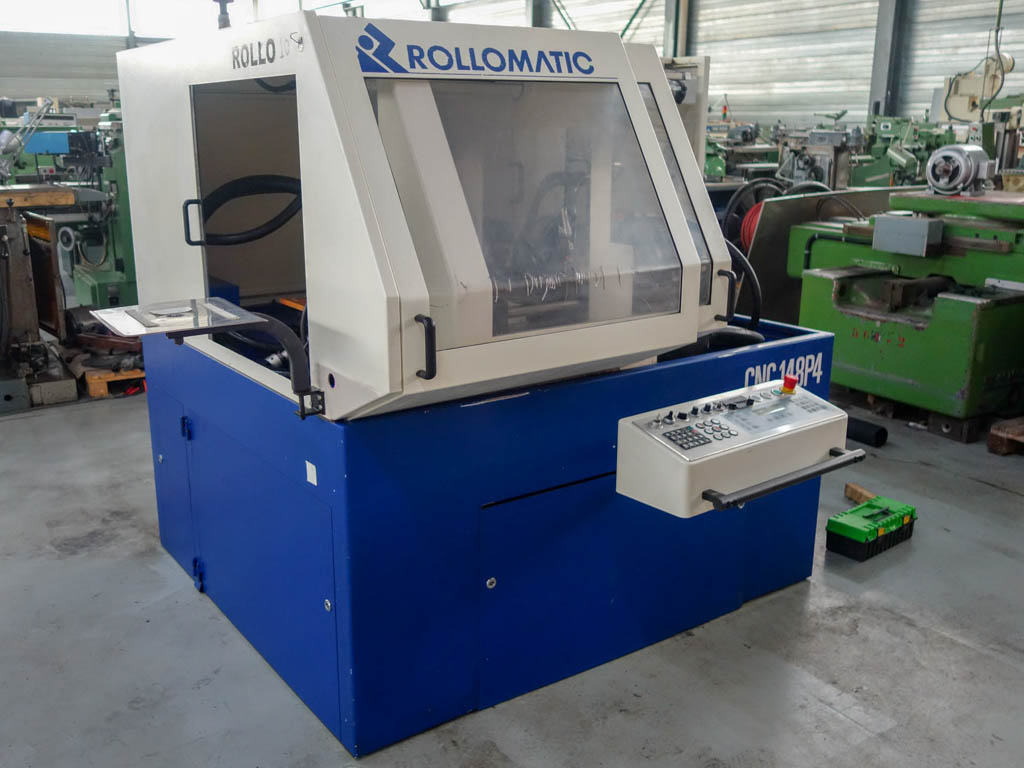

ROLLOMATIC CN148P4 - Gebrauchte Maschine
Verkauft
| Modell | CNC 148 P4 |

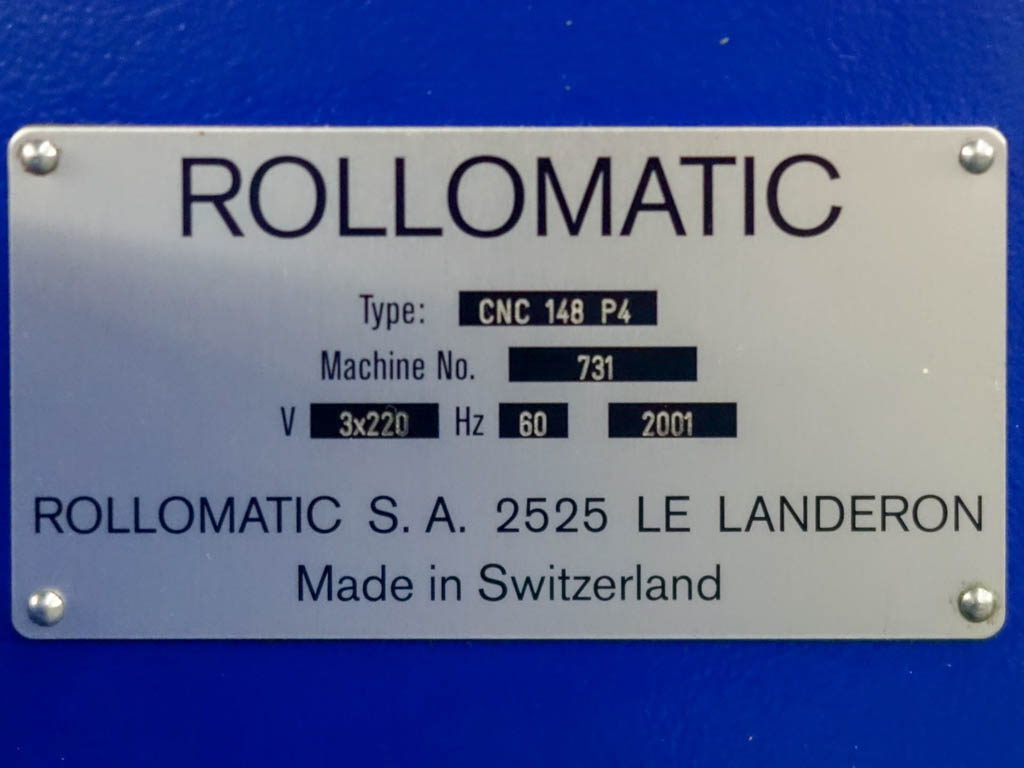

| Seriennummer | 731 |
| Year | 2001 |
| Schleifkapazität | Ø 0.025 -12.7 mm |
| Stangendurchmesser | Ø 1.0 - 12.7 mm |
| Schleiflänge | 0 - 200 mm |
| Abmessungen | 1830 x 2040 x 2100 mm |
CNC tool grinding machine
Clamping collets : W15 (Option W20)
Z axis Stroke : 35 mm
Resolution 0.5um
X axis Stroke : 25 mm
Resolution 0.1um

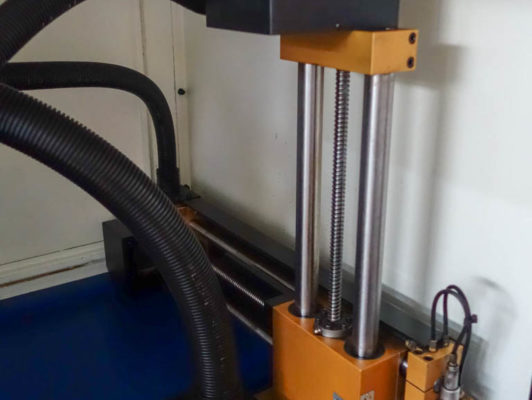

Y axis Stroke : 286 mm
Resolution 0.5um
U axis Stroke : 15 mm
Resolution 0.1um

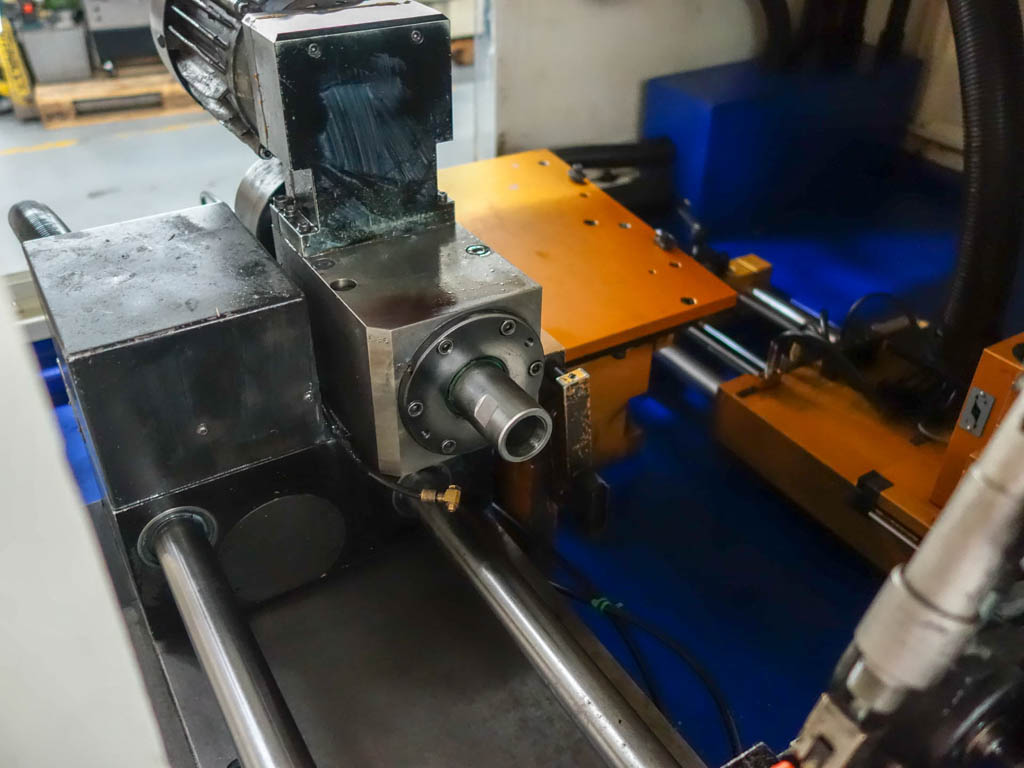

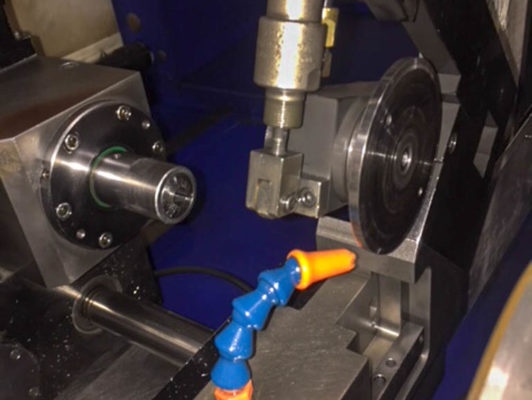

Workhead
Motor : 0.70 kW
Rotation : 300 3000 rpm

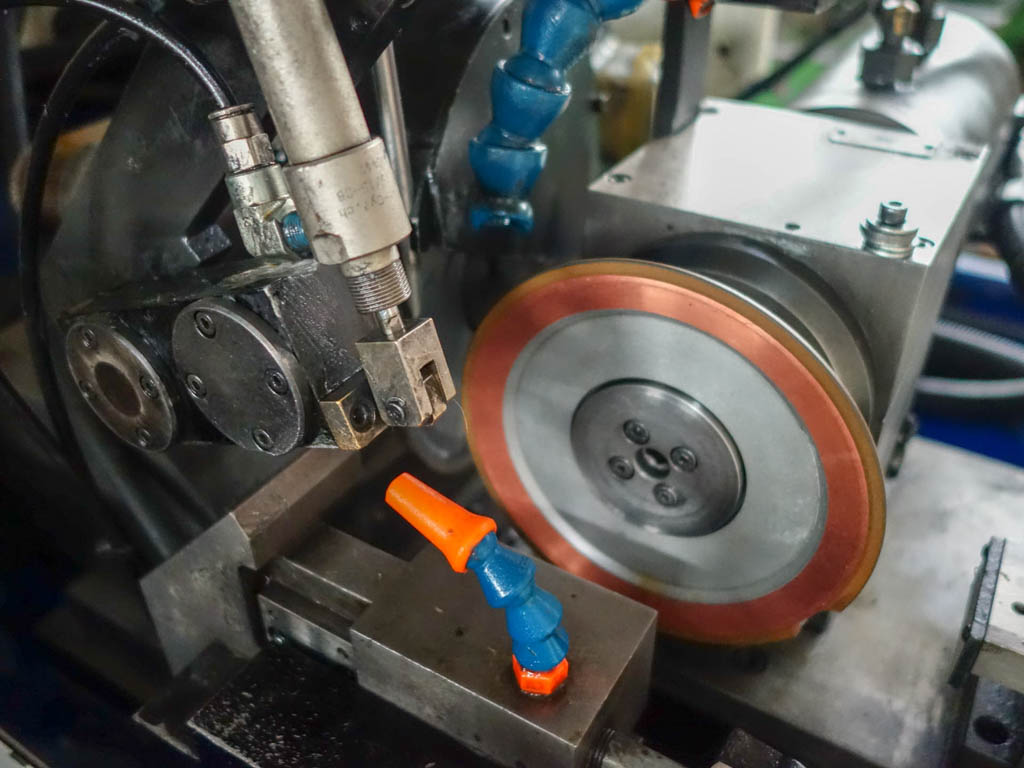

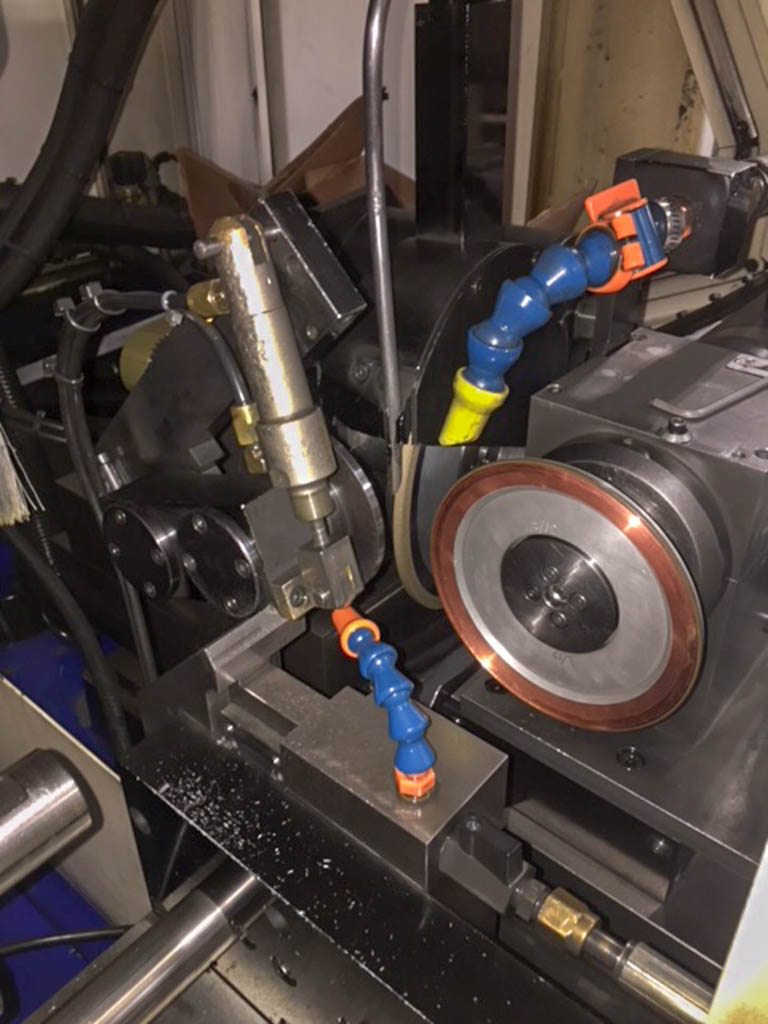

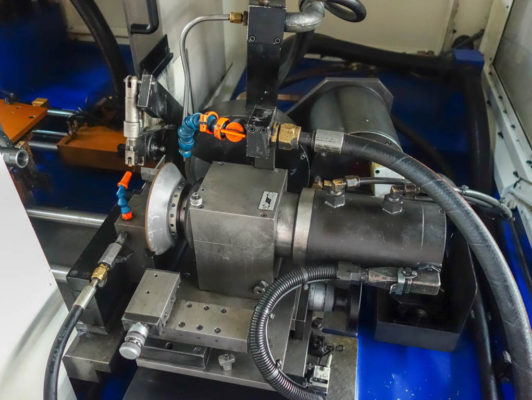

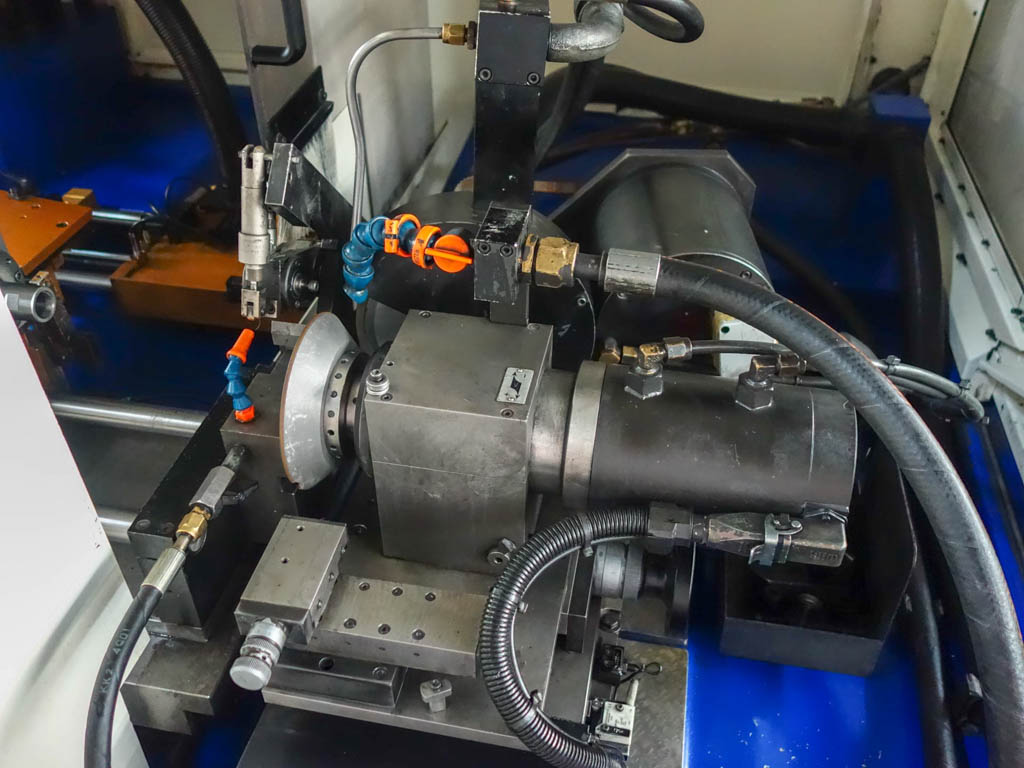

Grinding
Rough grinding motor : 1.5 kW
Spindle : Ø 60 mm
Grinding wheel : Ø 200 mm
Cutting speed : 30 m/sec.
Finish grinding motor : 0.75 kW
Spindle : Ø100 mm direct drive
Grinding wheel : Ø150 mm

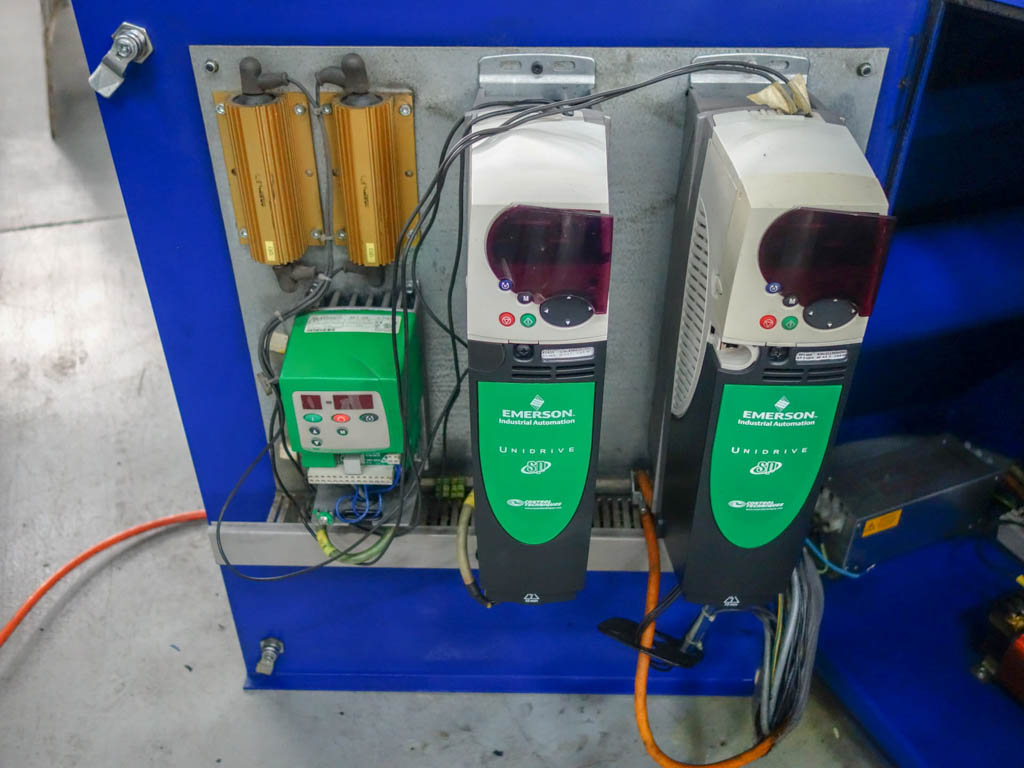

Cutting speed : Adjustable, frequency converter
Net weight : Approx. 1800 Kg

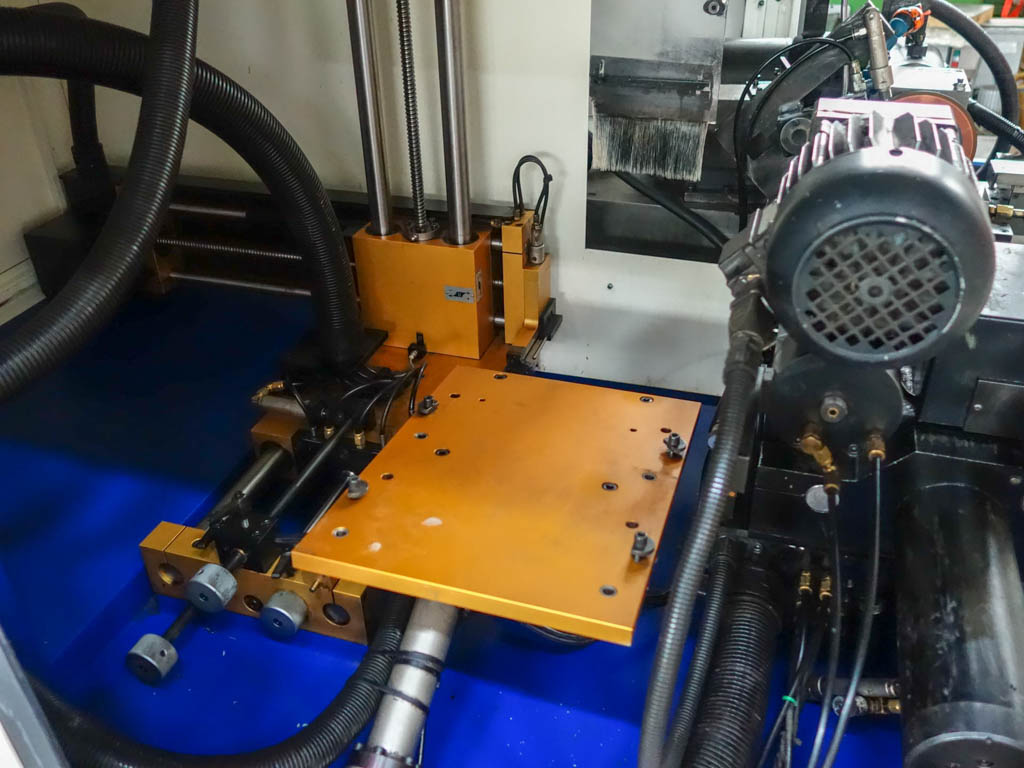

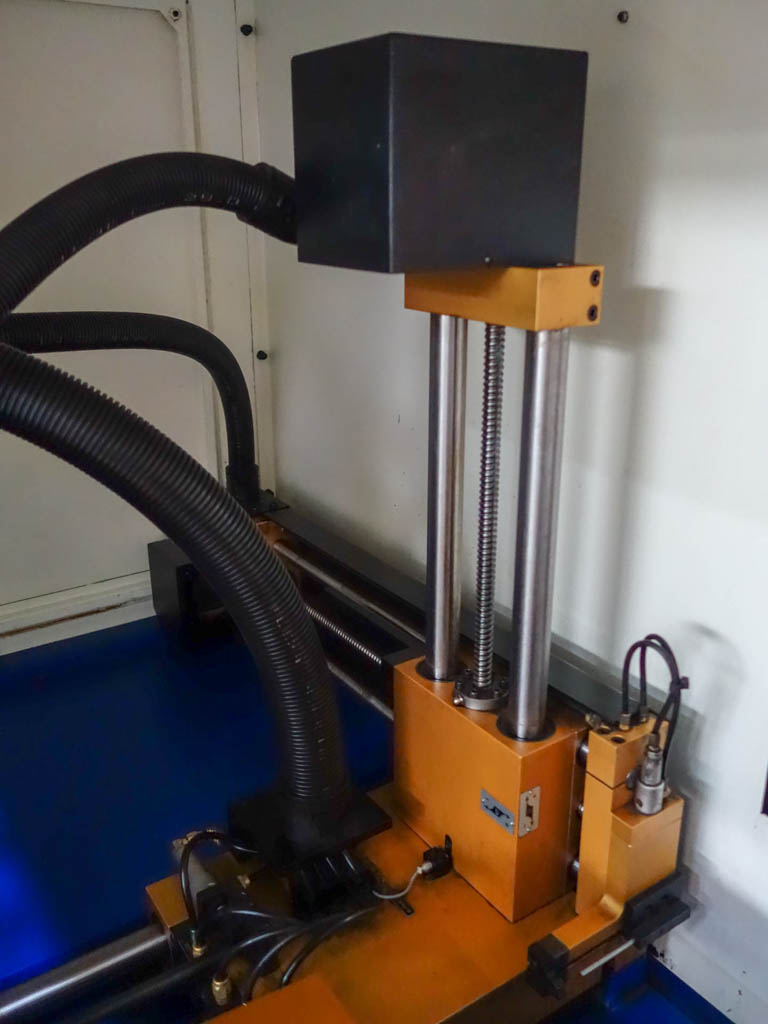

Automatic loader
