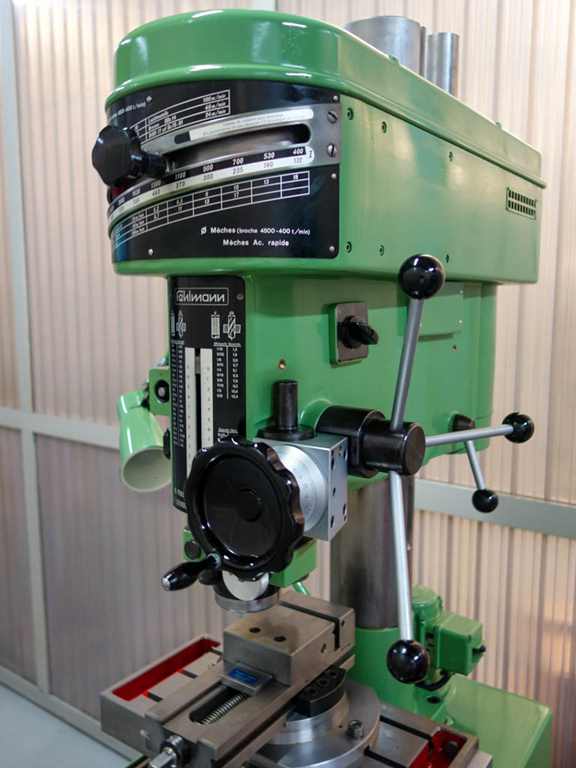

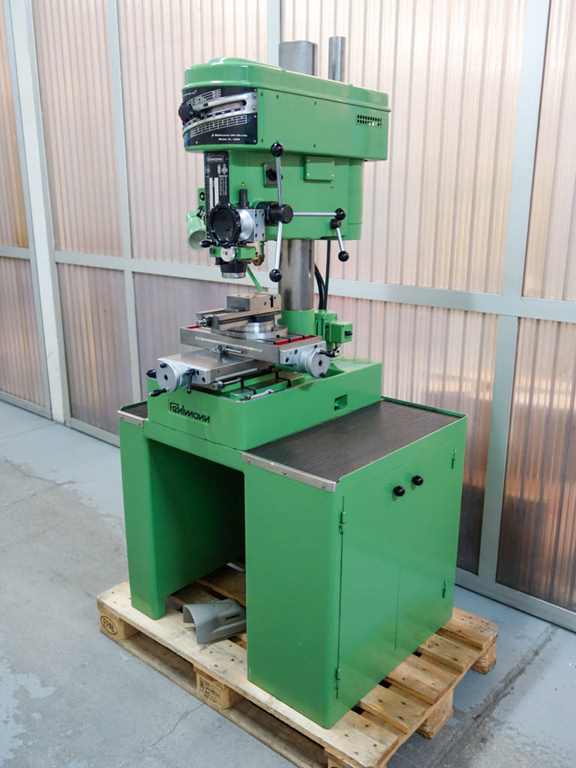

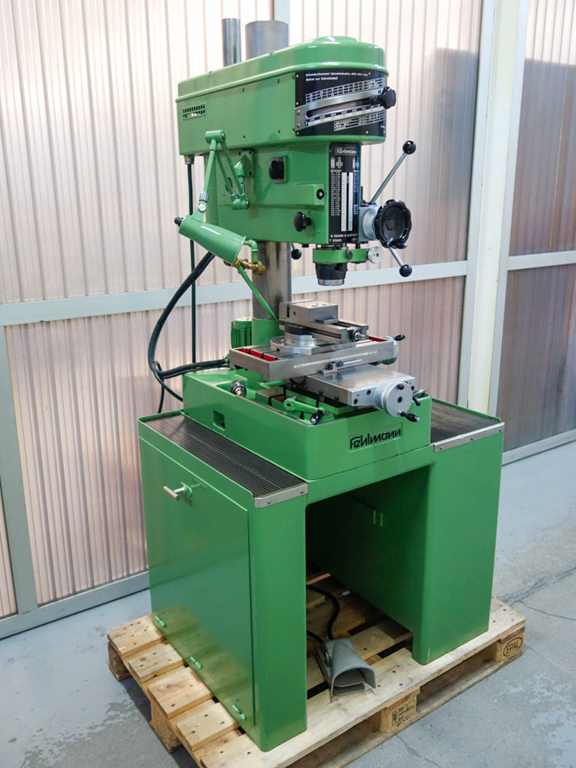

FEHLMANN P18S - Used machine
SOLD
| Steel drilling capacity | Ø 18 mm |
| Spindle stroke | 110 mm |
| Throatdepth | 226 mm |
| min distance between the spindle nose and the center of the table | 175 mm |
| Max distance between spindle nose and the center of the table | 645 mm |
| Travel speed in Z | SF 32 System mm/mn |
| Repetition accuracy | 0,002 mm |
| Tool changing time | ≃ 3 sec |
| Spindle speed | 132 - 4500 RPM |
| Motor power | 1,1 HP |
| Maximum weight admitted (kg) | ≃ 160 kgs |
| Clamping surface | 620 x 400 mm |
| Weight | ≃ 650 Kg |

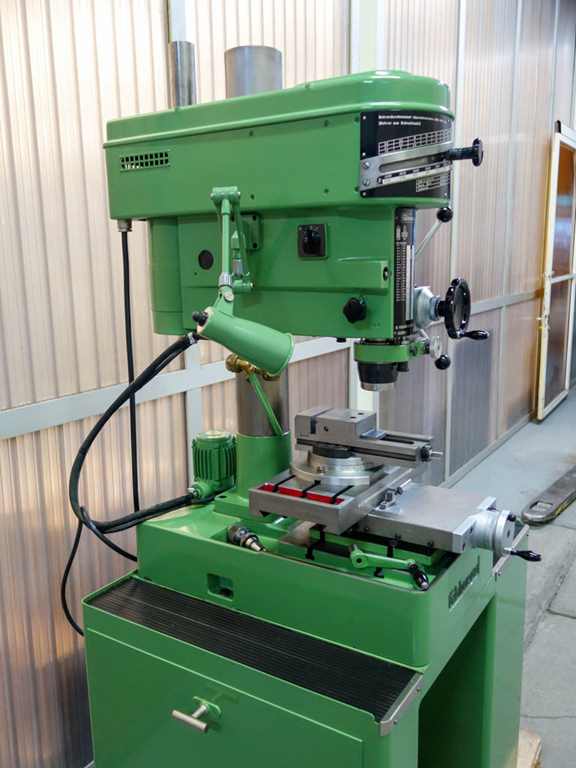

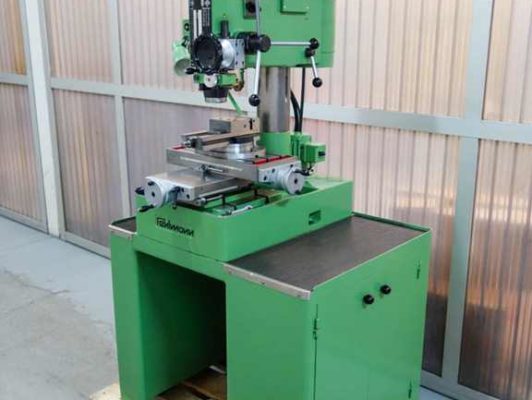

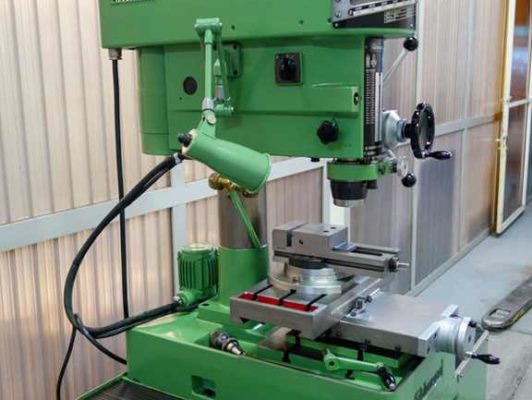

DRILLING AND MILLING MACHINE
Threading capacity in steel : M 14
COMPOSITION
Adjustable stop with crank

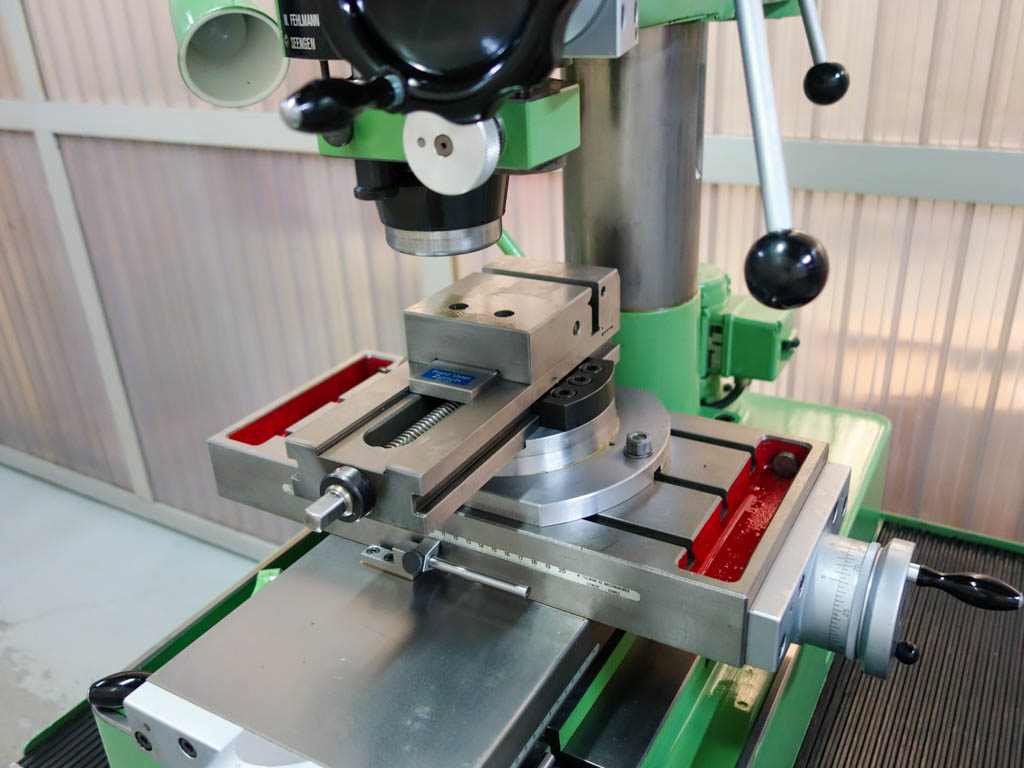

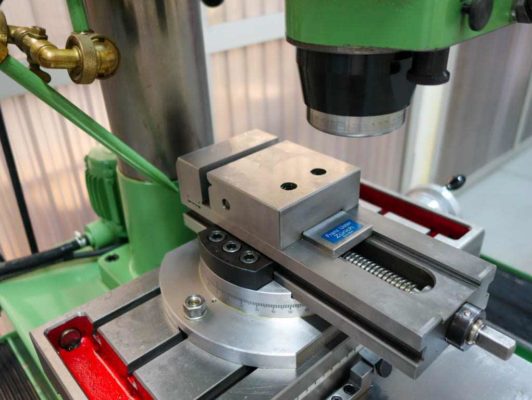

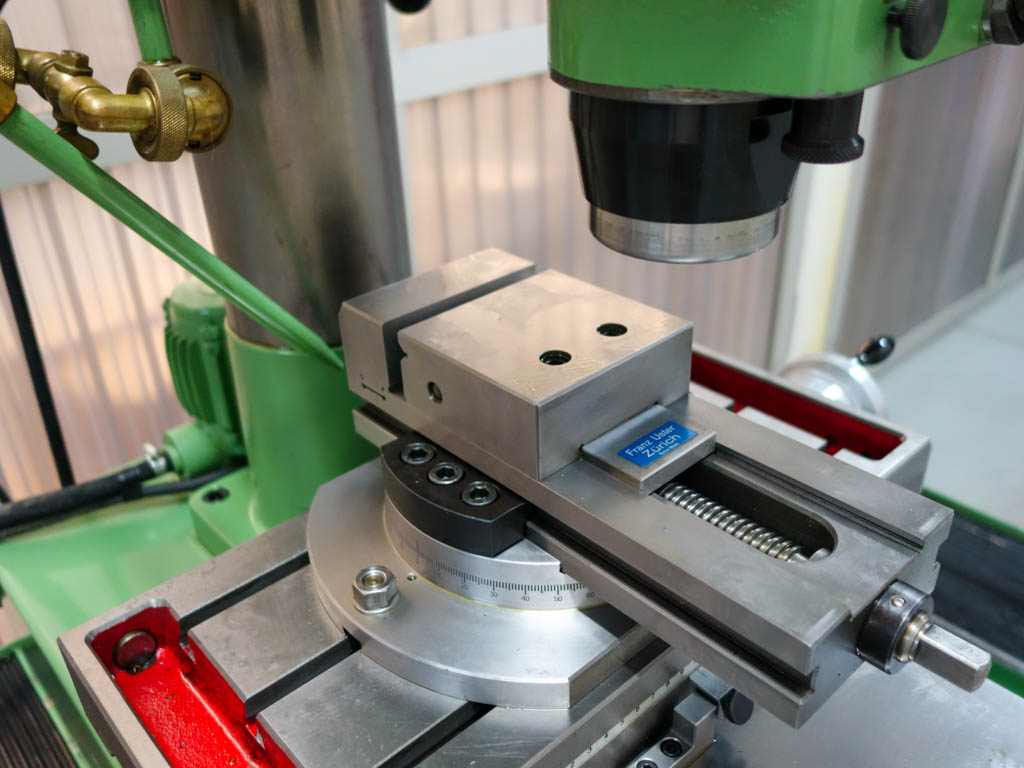

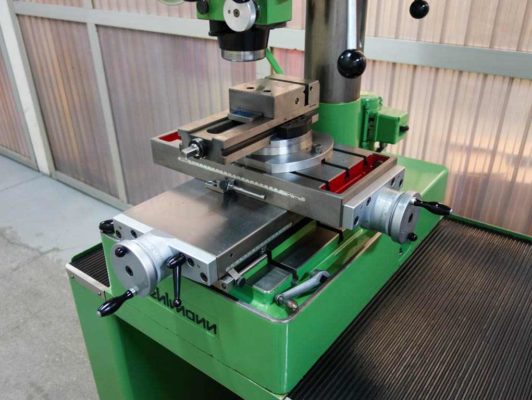

table KS 400, travel X / Y : 200 x 150 mm
Iron base
