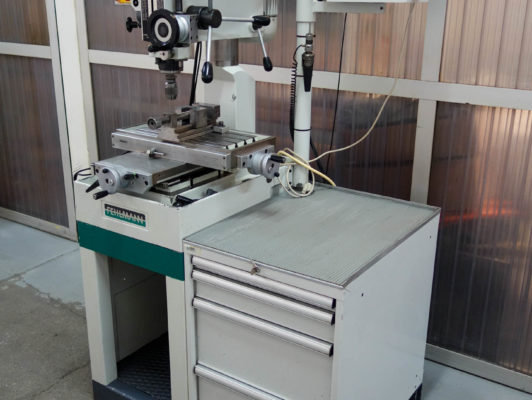

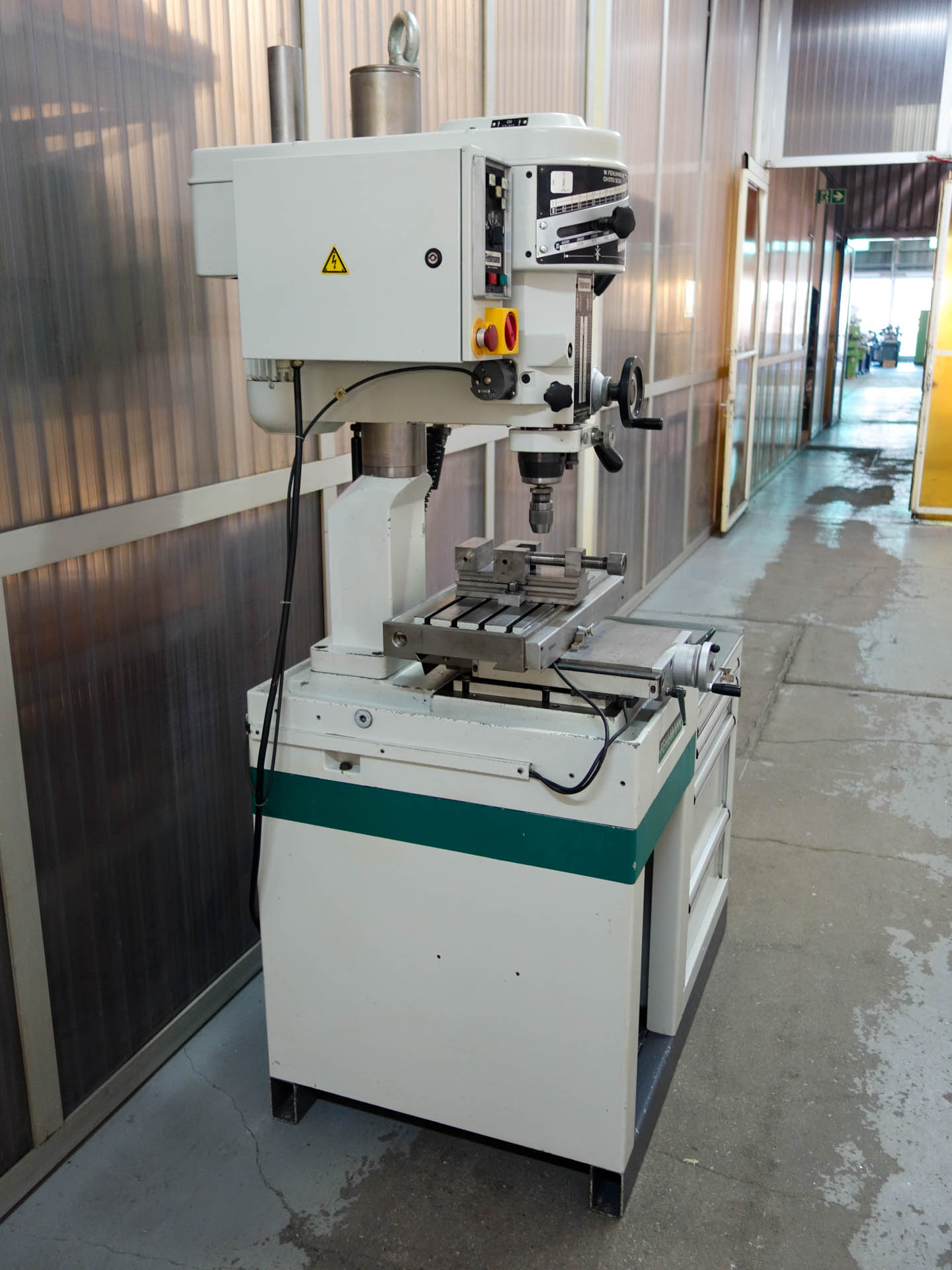

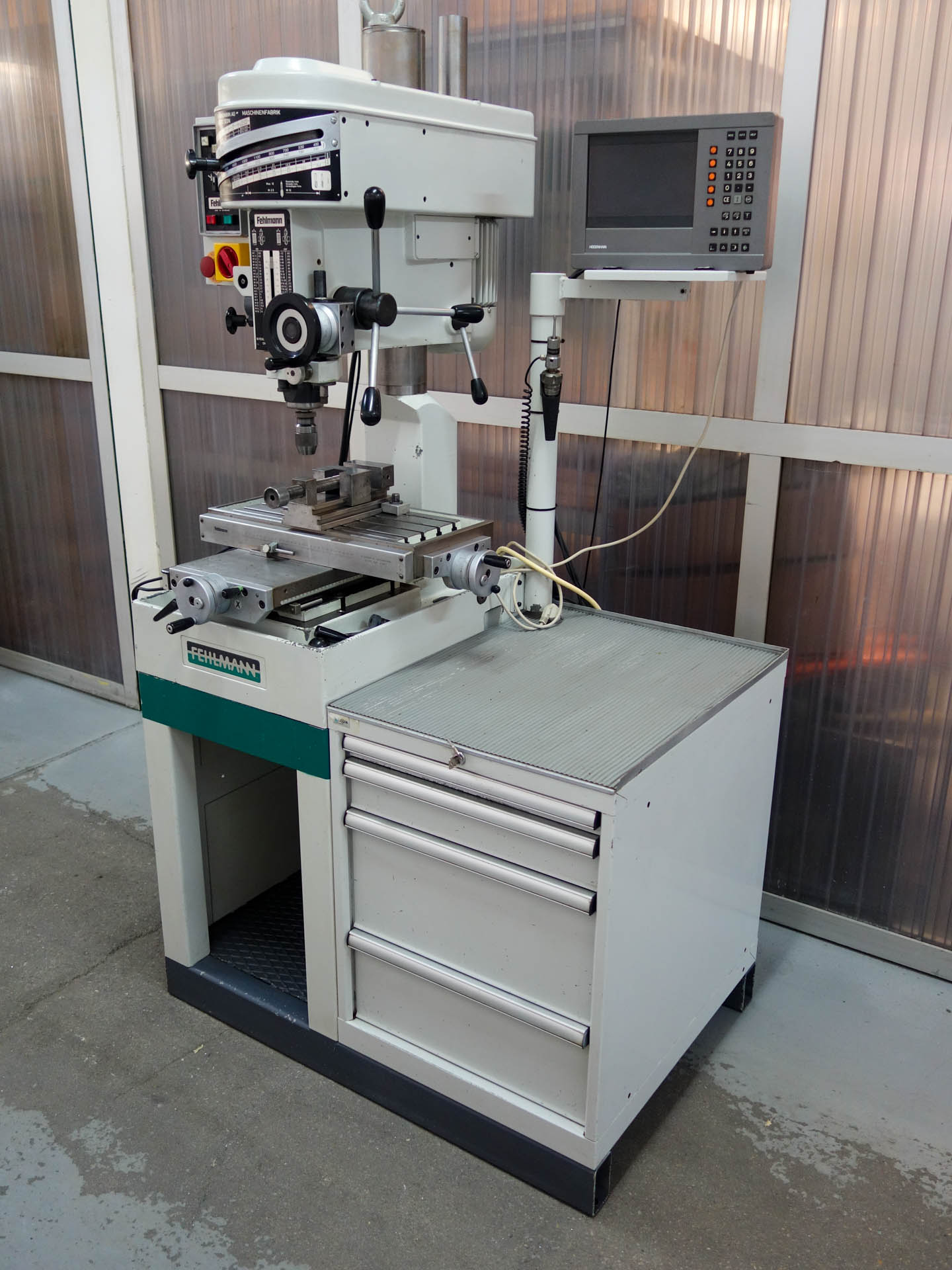

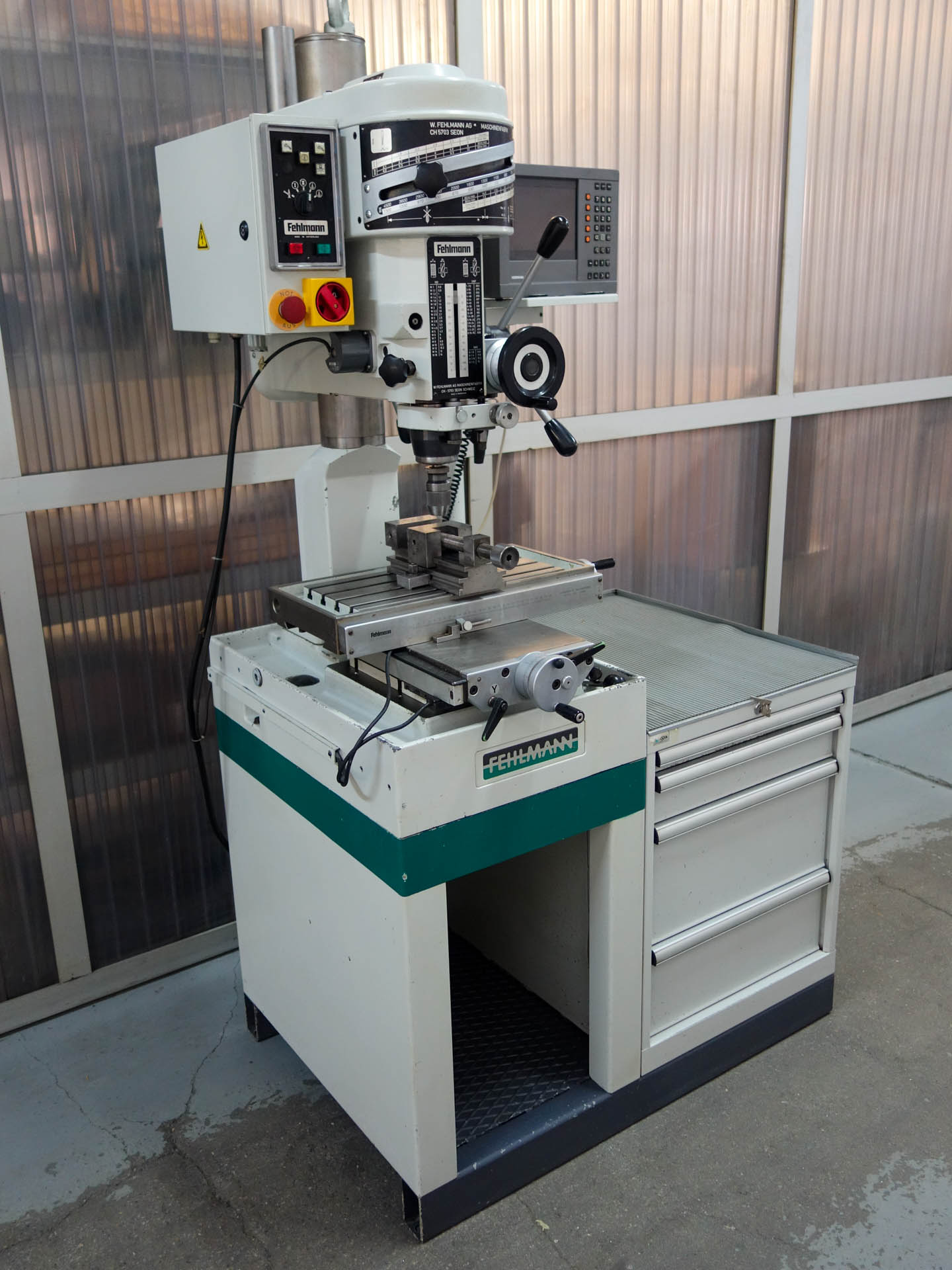

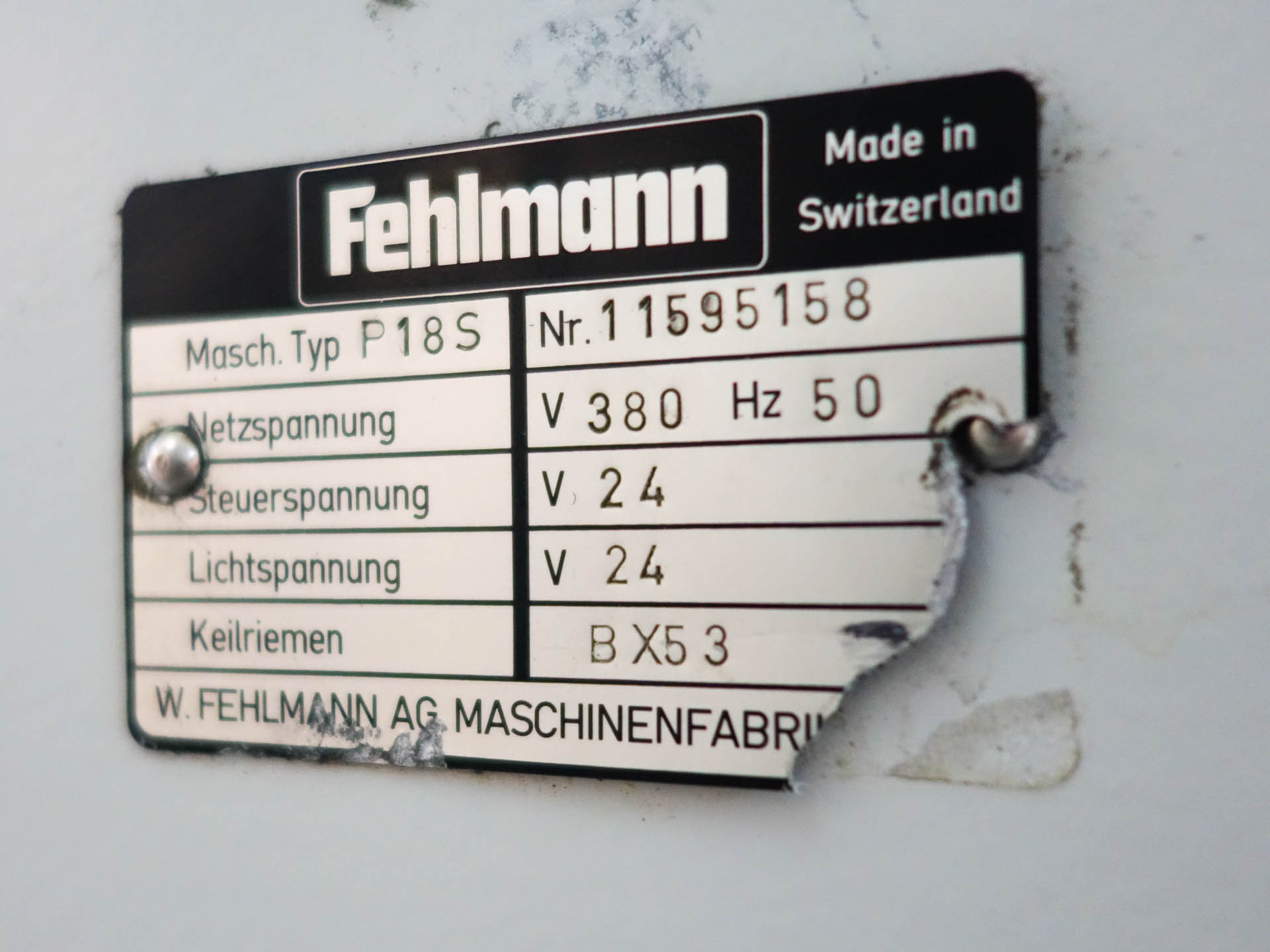

FEHLMANN P18S - Used machine
SOLD
| Steel drilling capacity | Ø 18 mm |
| Spindle stroke | 110 mm |
| Throatdepth | 260 mm |
| min distance between the spindle nose and the center of the table | 175 mm |
| Max distance between spindle nose and the center of the table | 645 mm |
| Table size | 530x255 mm |
| Longitudinal stroke - X | 280 mm |
| Cross travel - Y | 210 mm |
| Maximum weight admitted (kg) | ≃ 160 kgs |
| Travel speed in Z | Système SF 32 mm/mn |
| Spindle speed | 132 - 4500 RPM |
| Motor power | 1,1 HP |
| Dimensions | 1100x1000x2100 mm |
| Weight | ≃ 650 Kg |
| Year | 1996 |

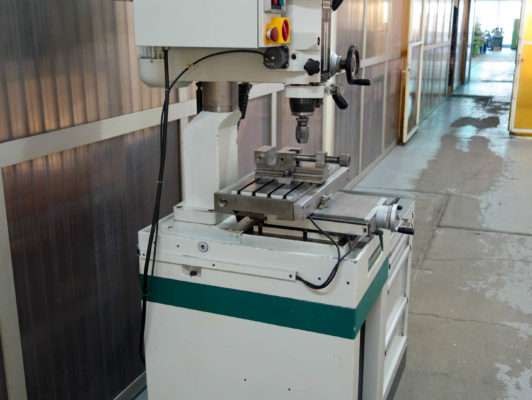

DRILLING AND MILLING MACHINE

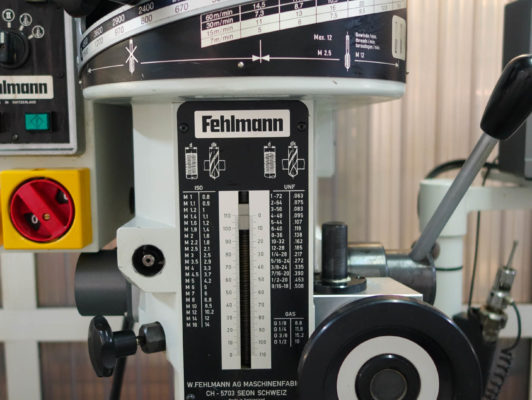

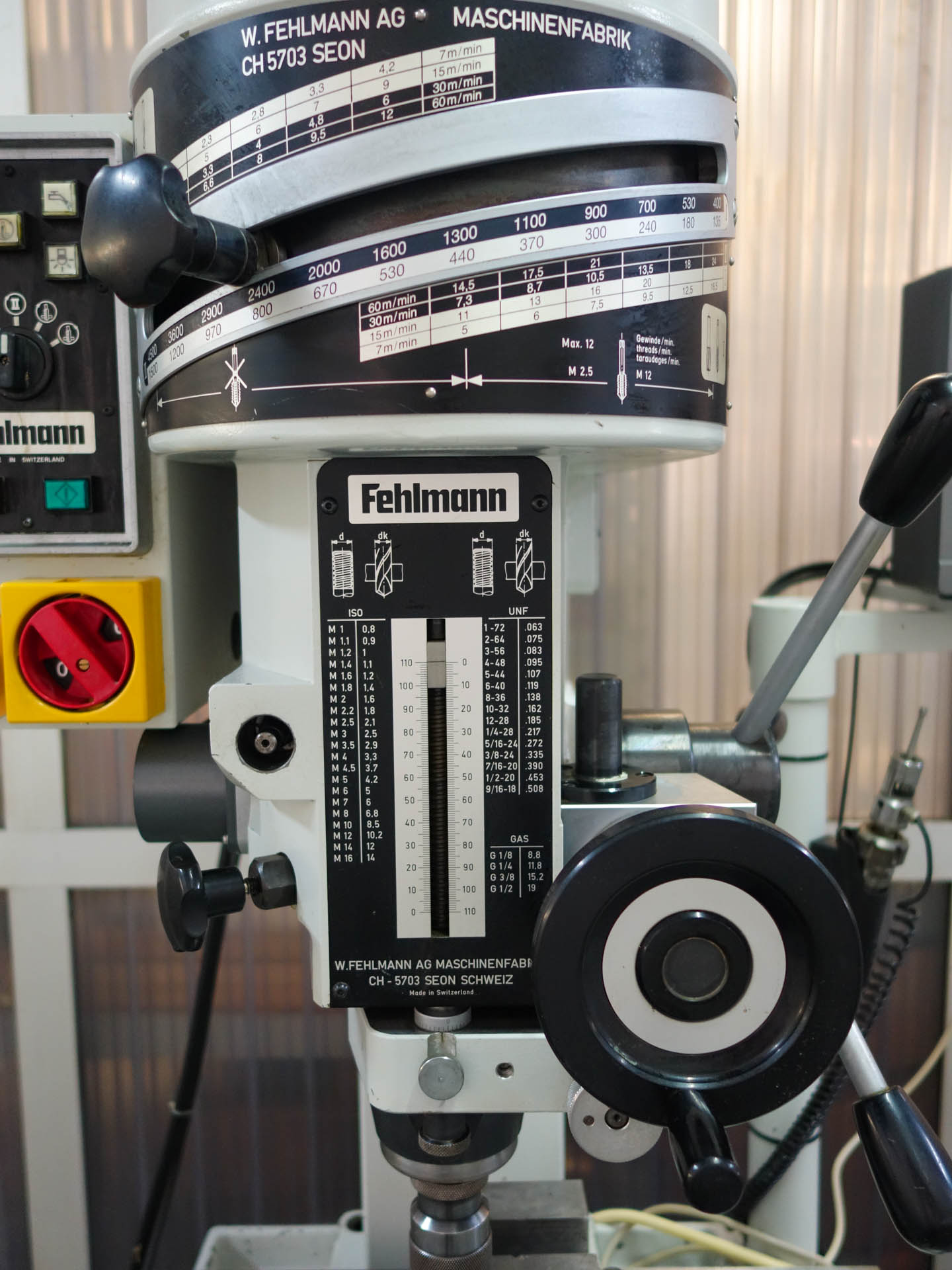

Threading capacity in steel: M 14
Equipment:

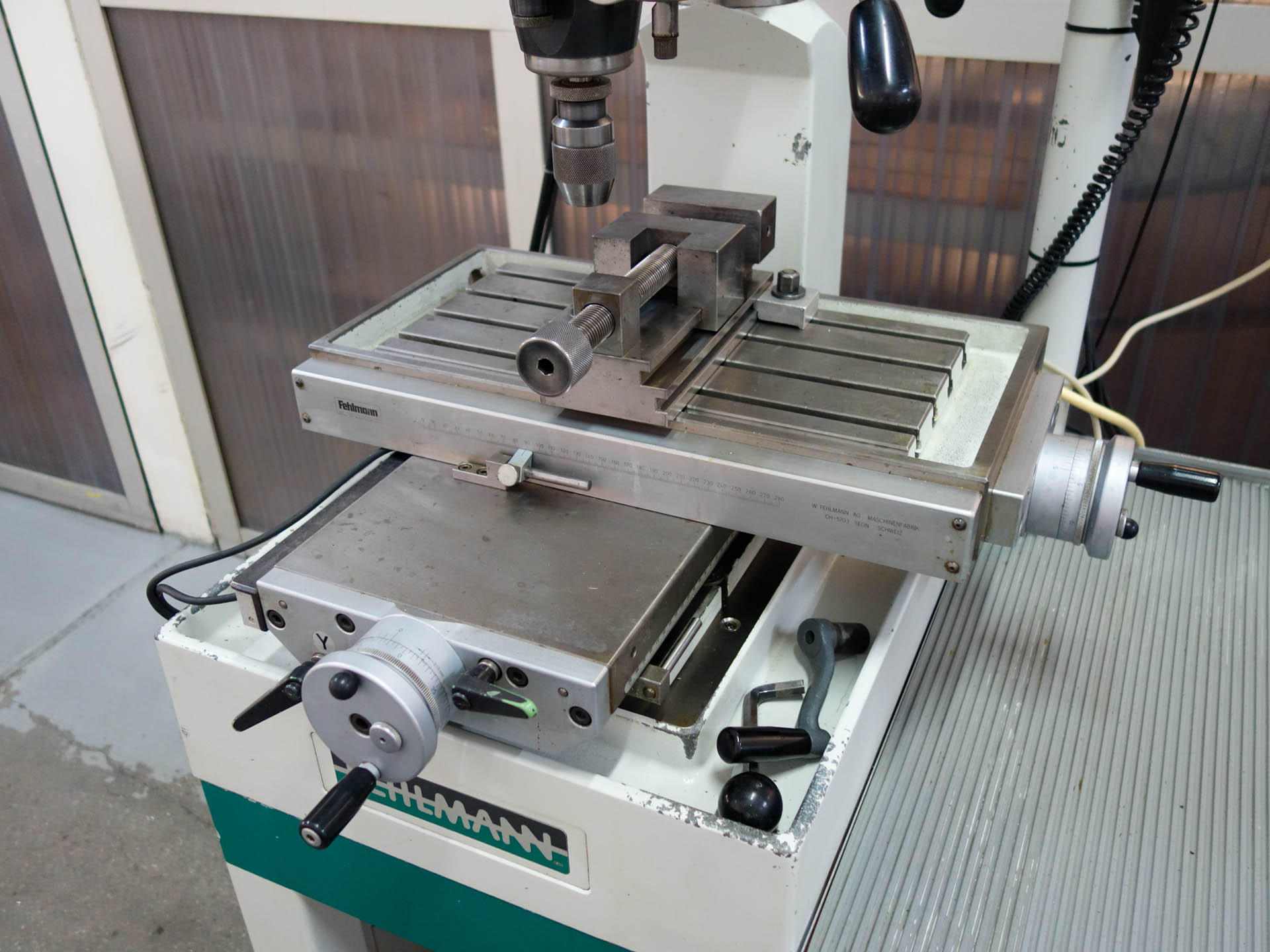

Table type KS255

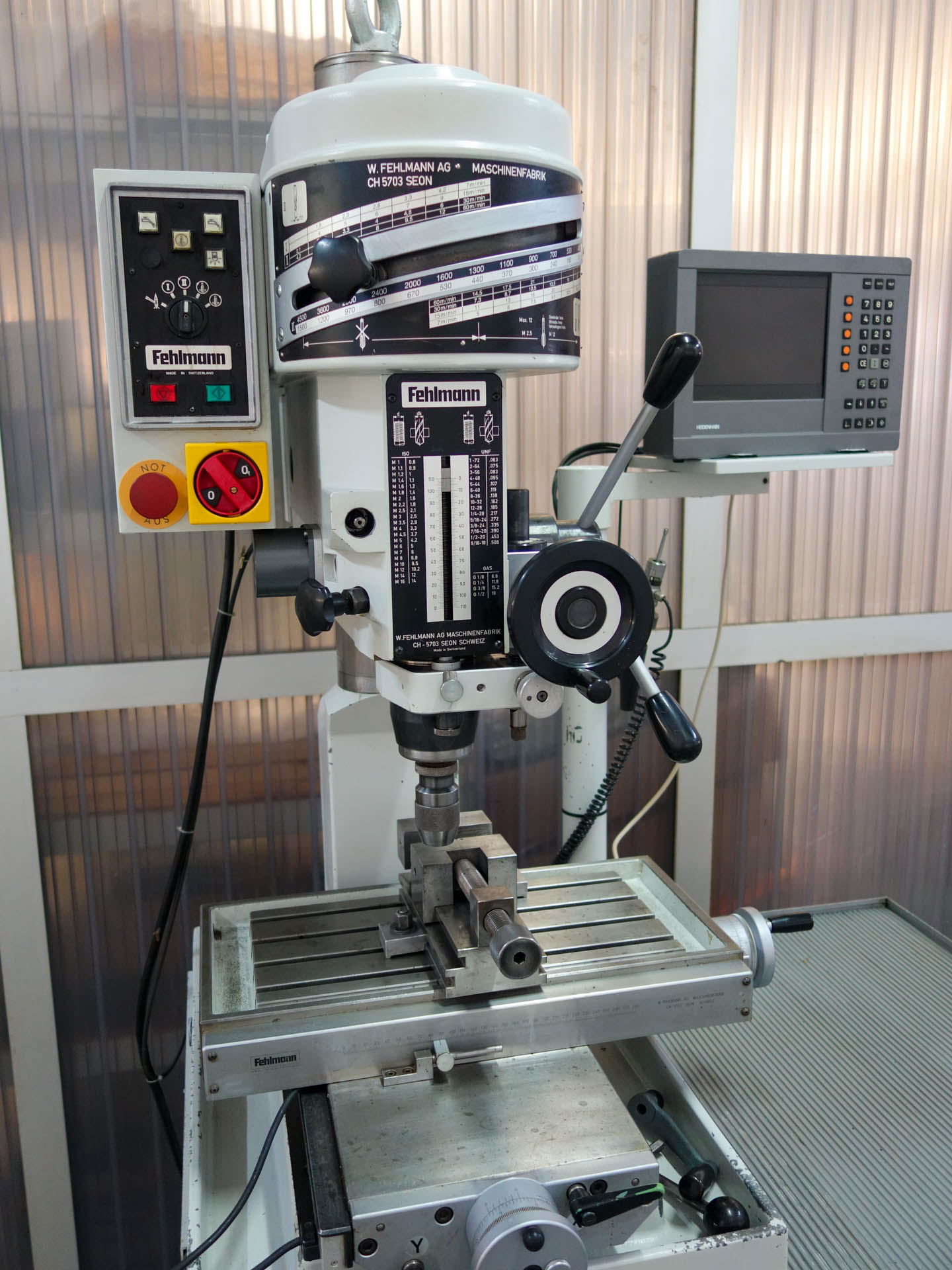

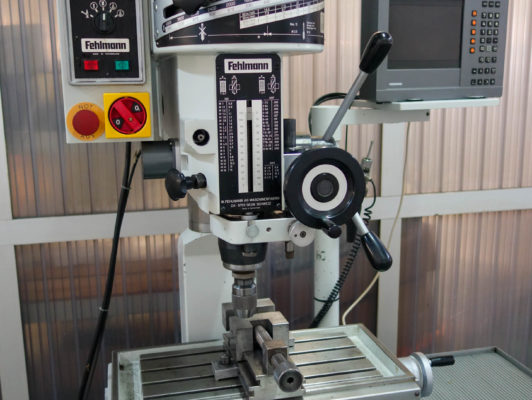

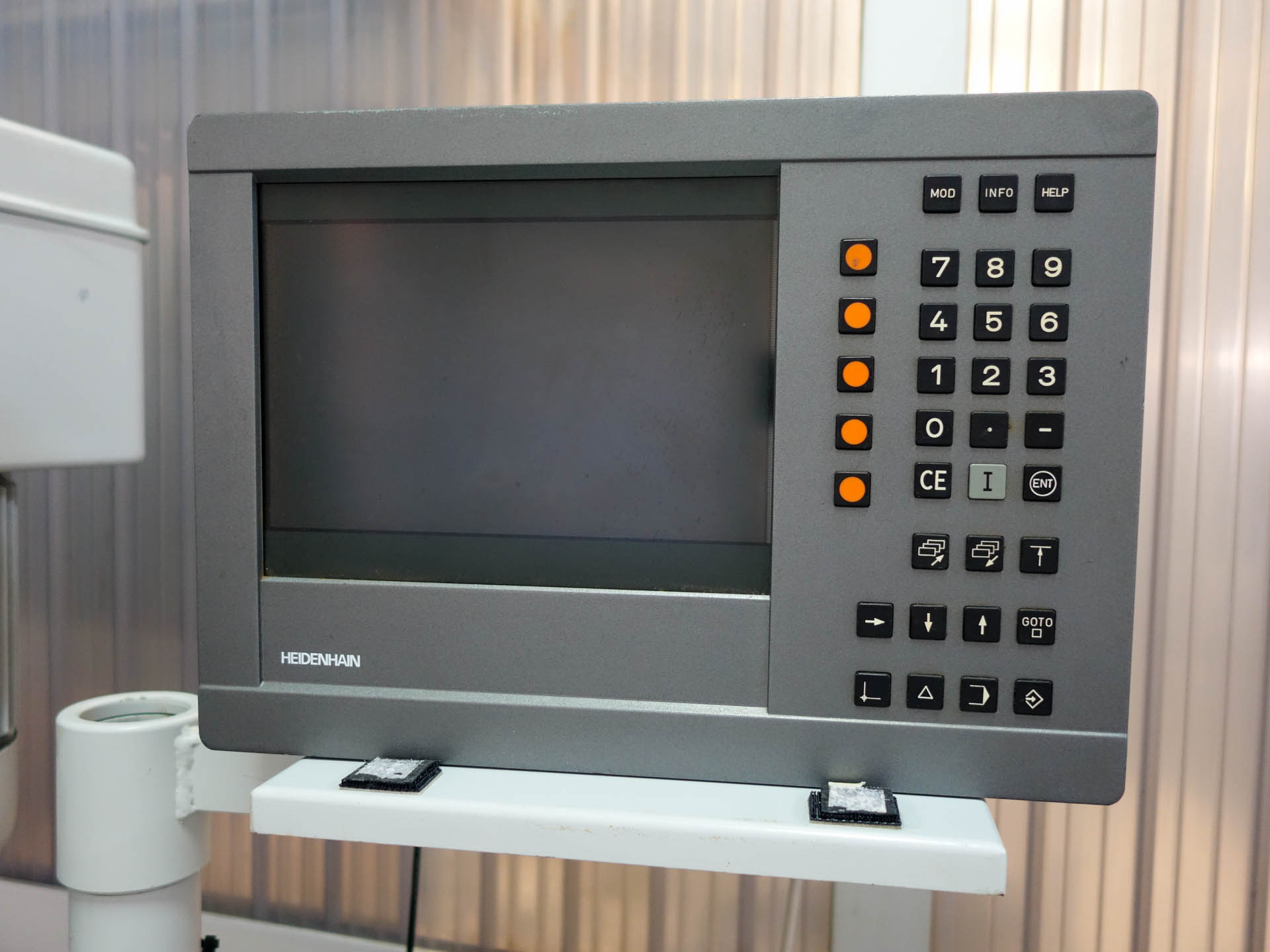

3 axis Digital Read Out HEIDENHAIN 855

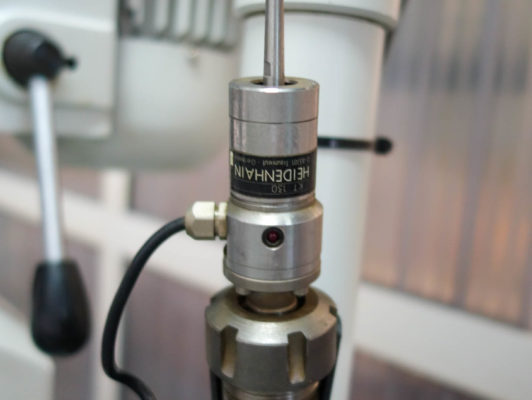

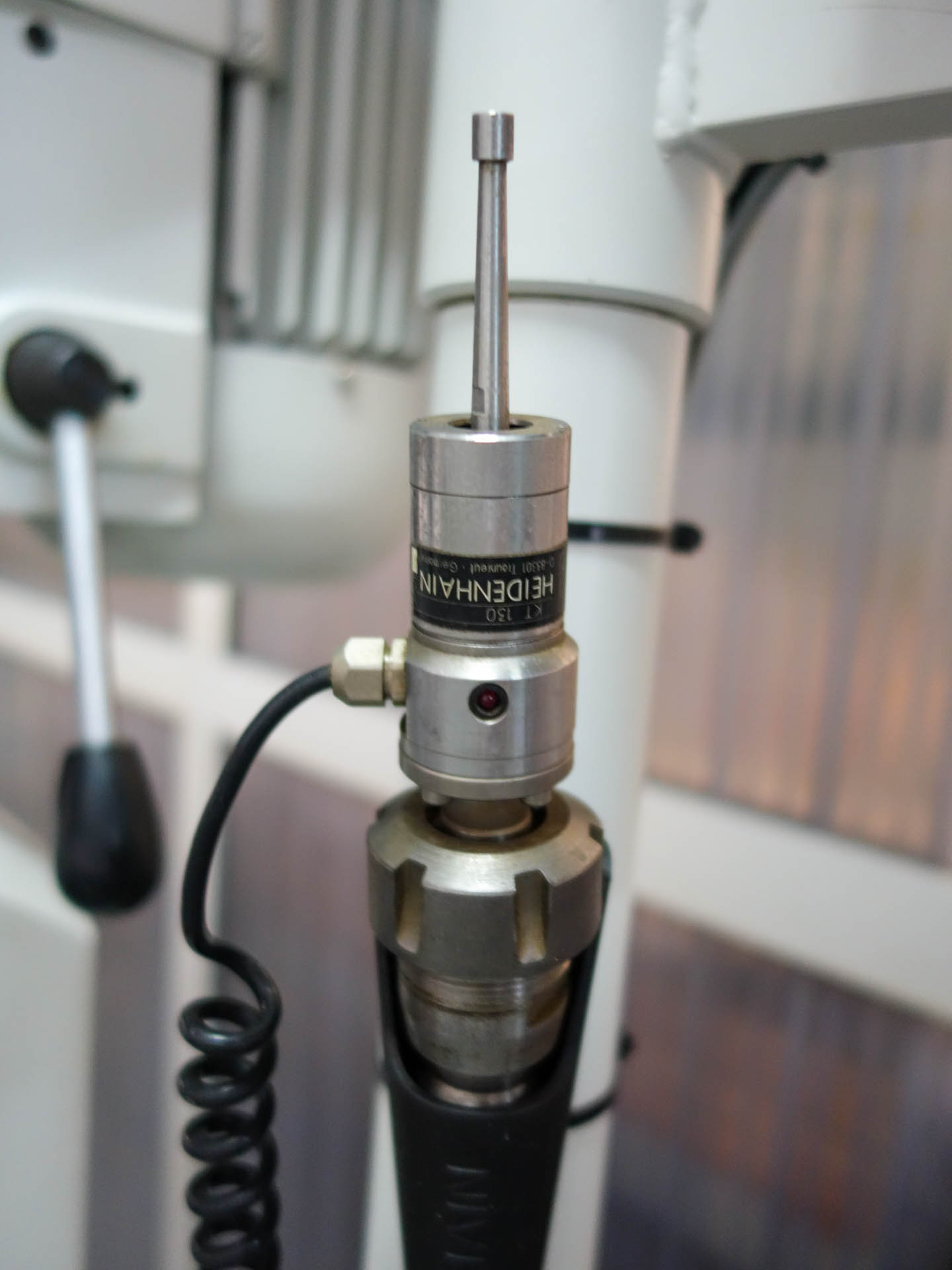

HEIDENHAIN touch probe KT 130
Wise, opening 100 mm

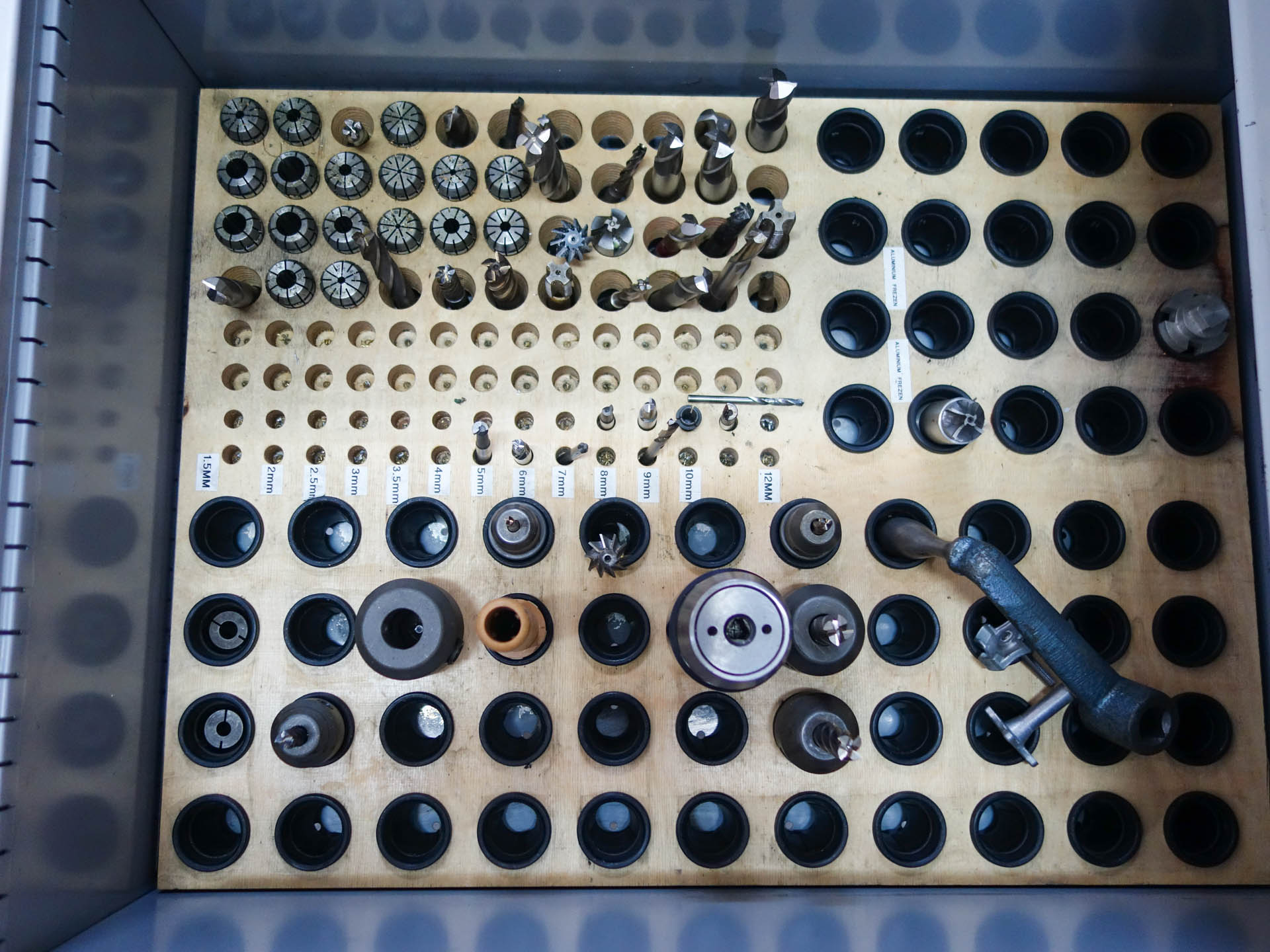

Set of toll holders and collets
1 Lamp
