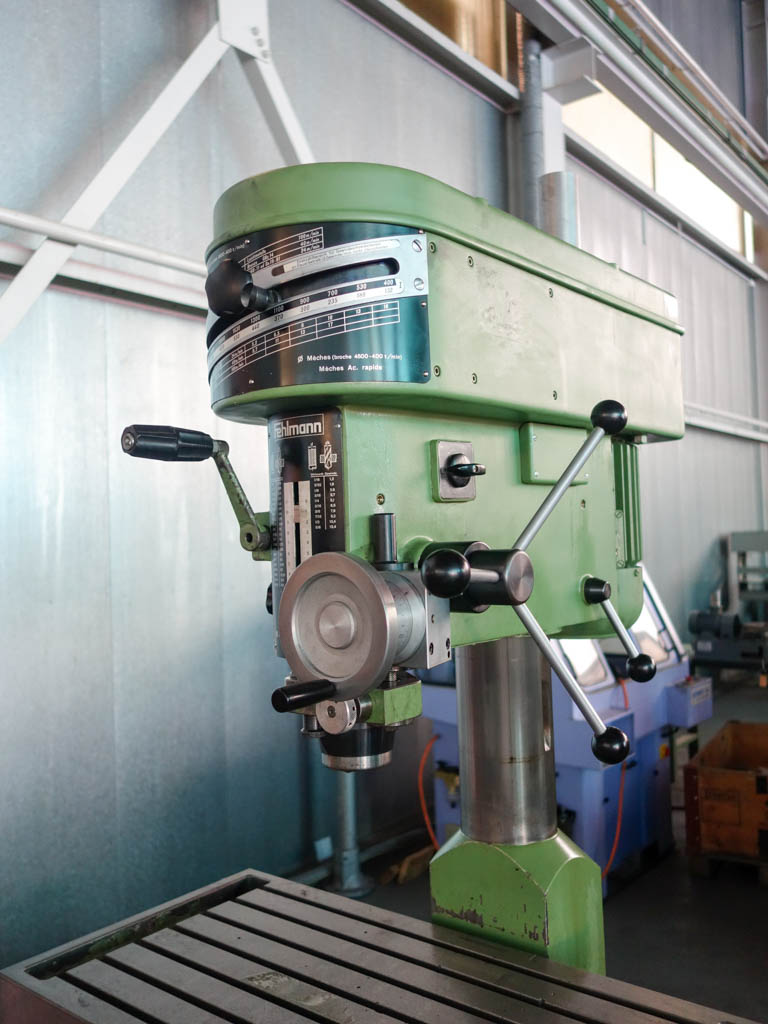

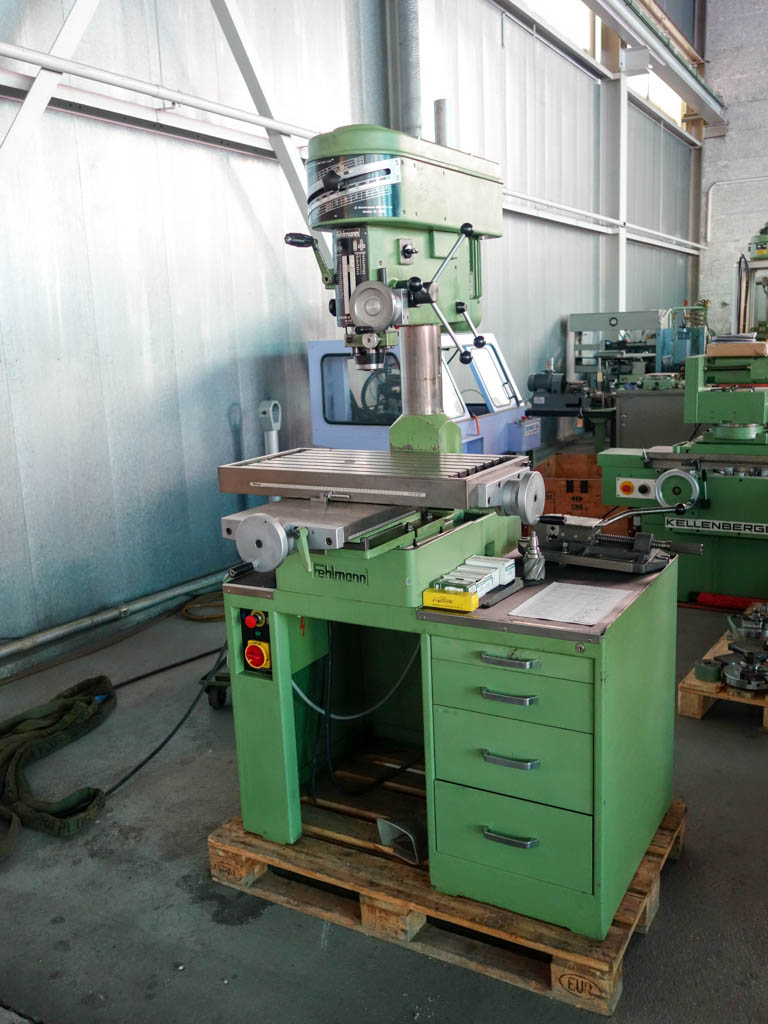

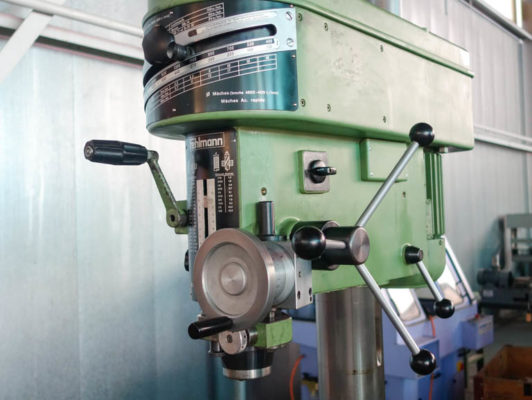

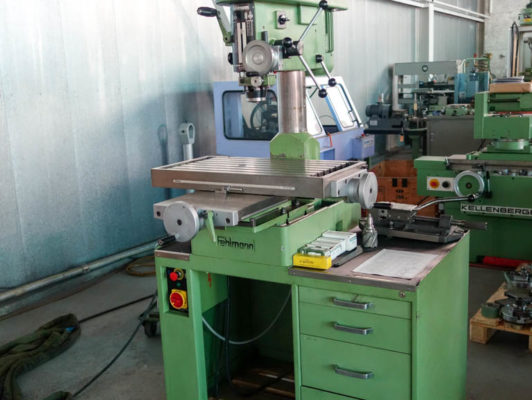

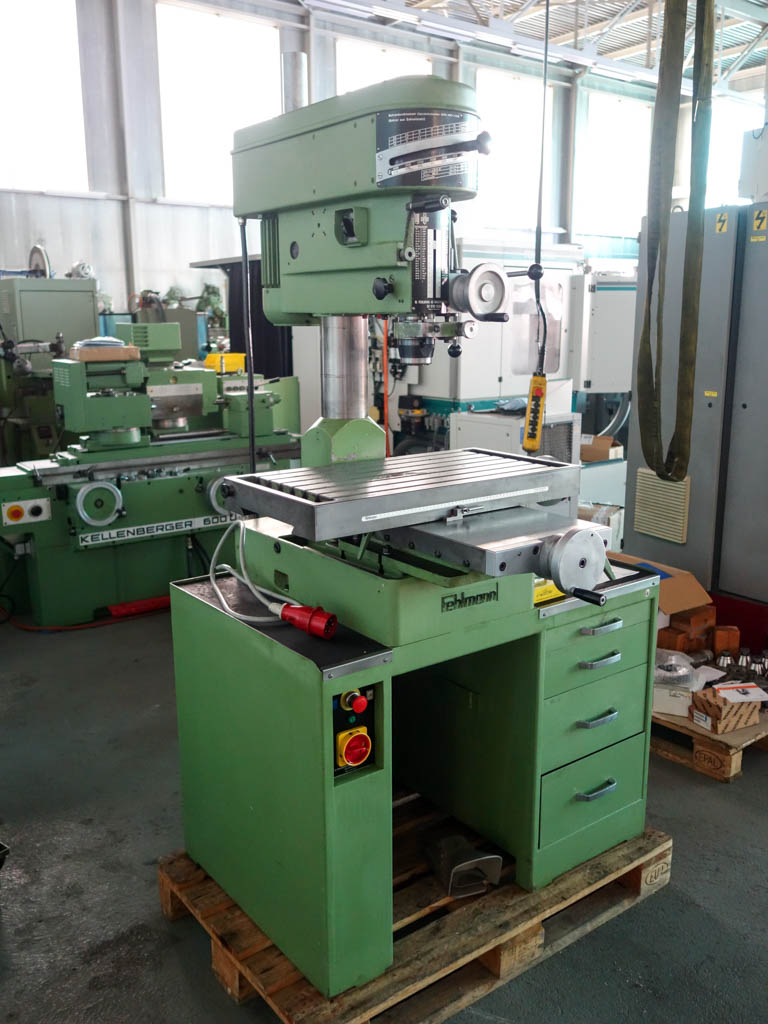

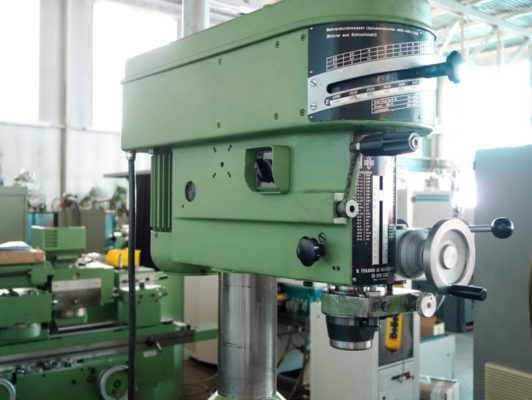

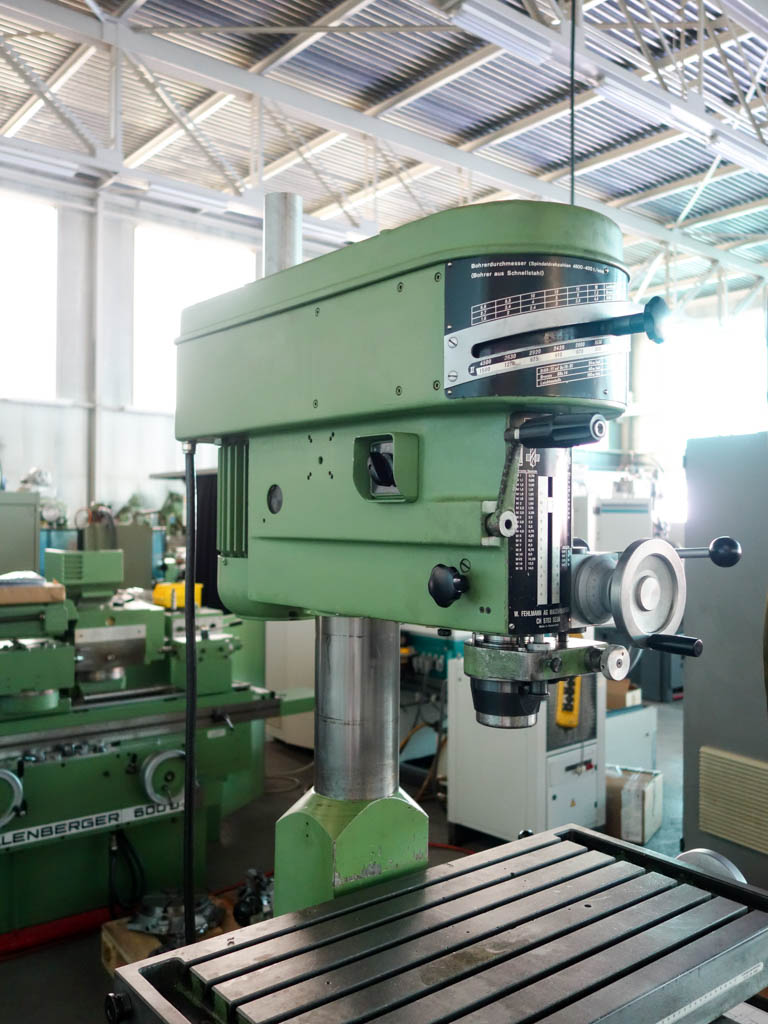

FEHLMANN P18S - Used machine

DRILLING AND MILLING MACHINE

CHARACTERISTICS

Drilling capacity in steel : Ø 18 mm
Threading capacity in steel : M 14
Quill stroke : 110 mm
Head travel : 340 mm
Free space between spindle and column : 260 mm
Spindle speed : 132-4500 RPM
Weight : about 650 kg

COMPOSITION

Adjustable stop with crank

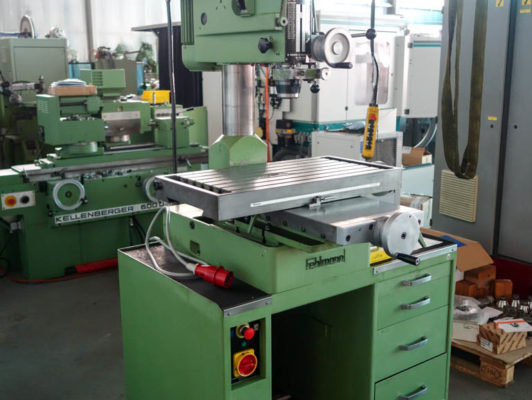

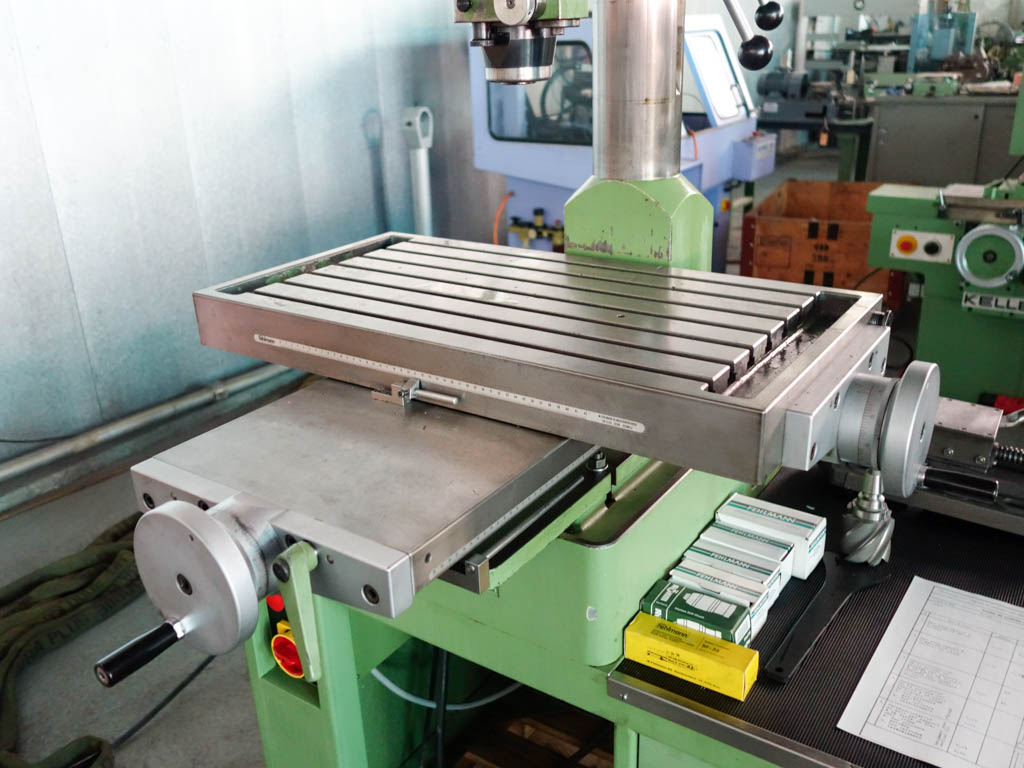

table KS 400, work surface 620 x 400 mm, travel X / Y : 420 x 300 mm
Iron base

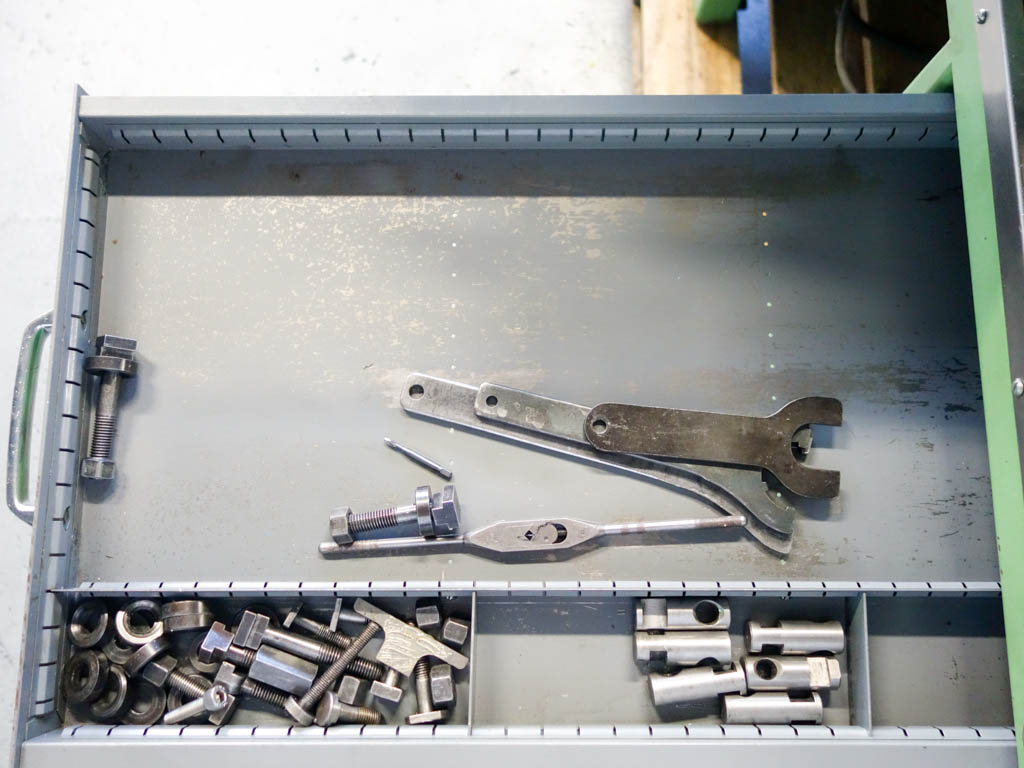

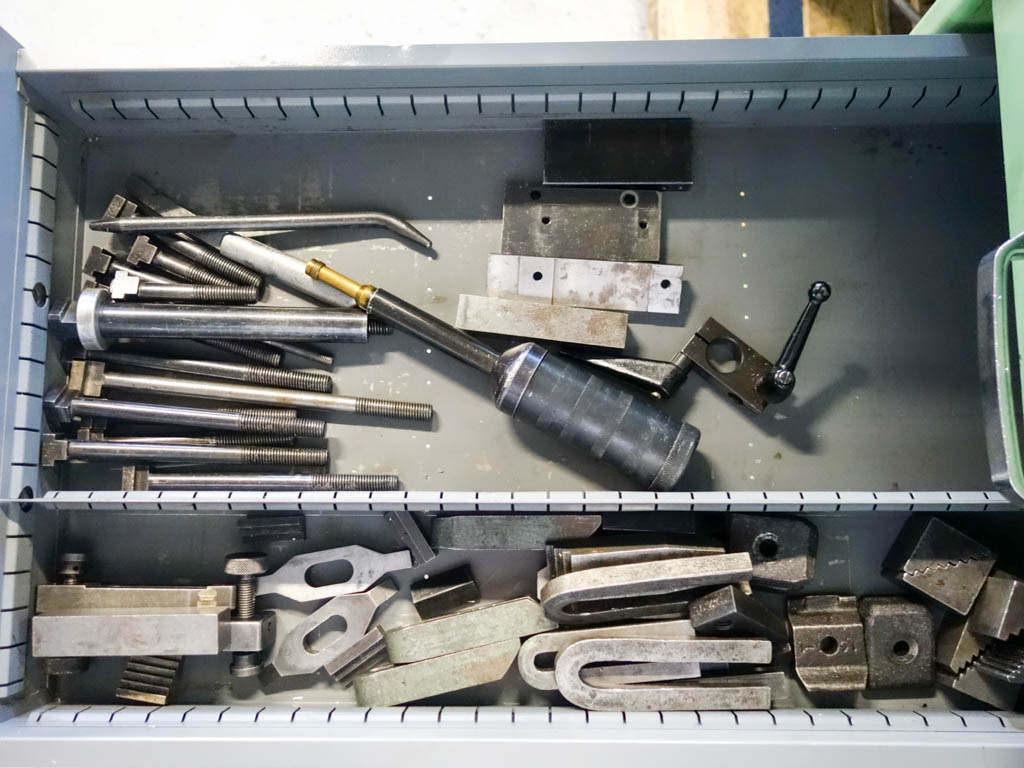

ACCESSORIES

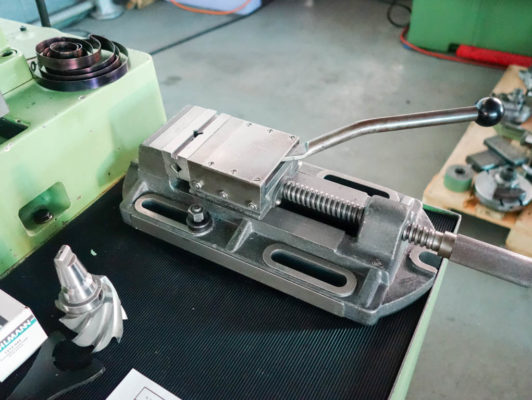

Vice

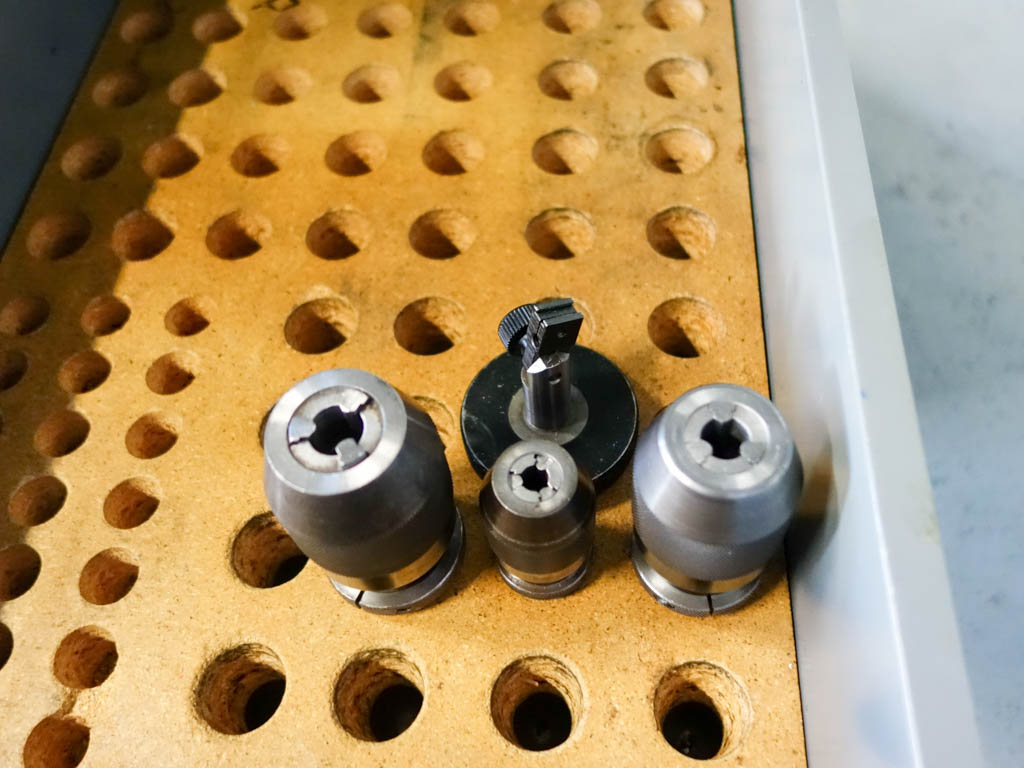

1 drilling chuck 0-8 mm
1 drilling chuck 1-13 mm
1 drilling chuck 3-16 mm

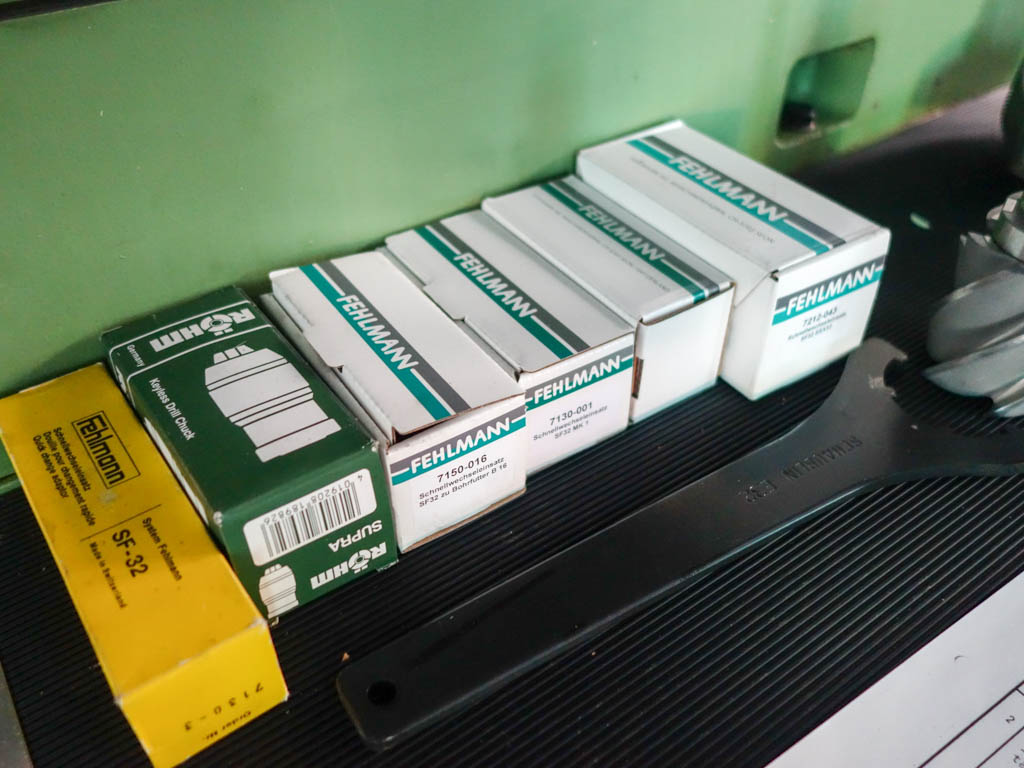

1 NEW drilling chuck 1-13 mm
1 NEW reduction sleeve SF 32 / CM1
1 NEW reduction sleeve SF 32 / CM2
1 NEW reduction sleeve SF 32 / CM3
1 Comparator holder SF32
1 milling tool holders
1 NEW Collet holder SF 32 / ESX 32 with nut and key
NEW halogen machine lamp
