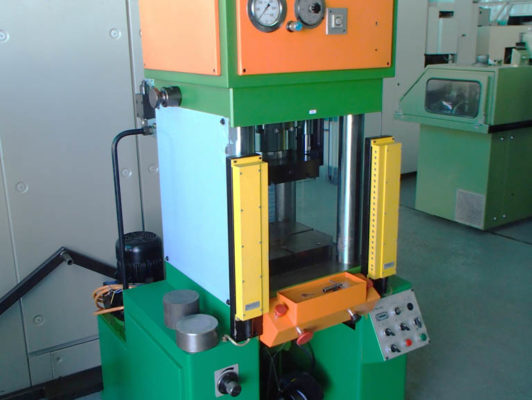

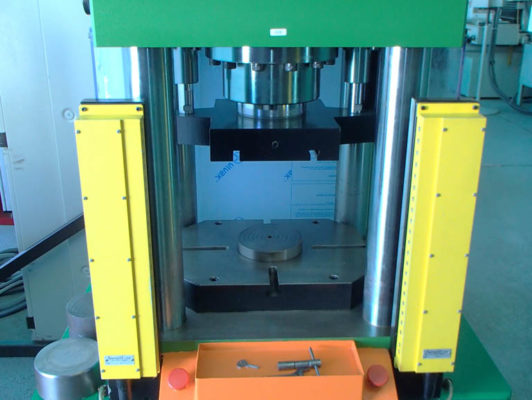

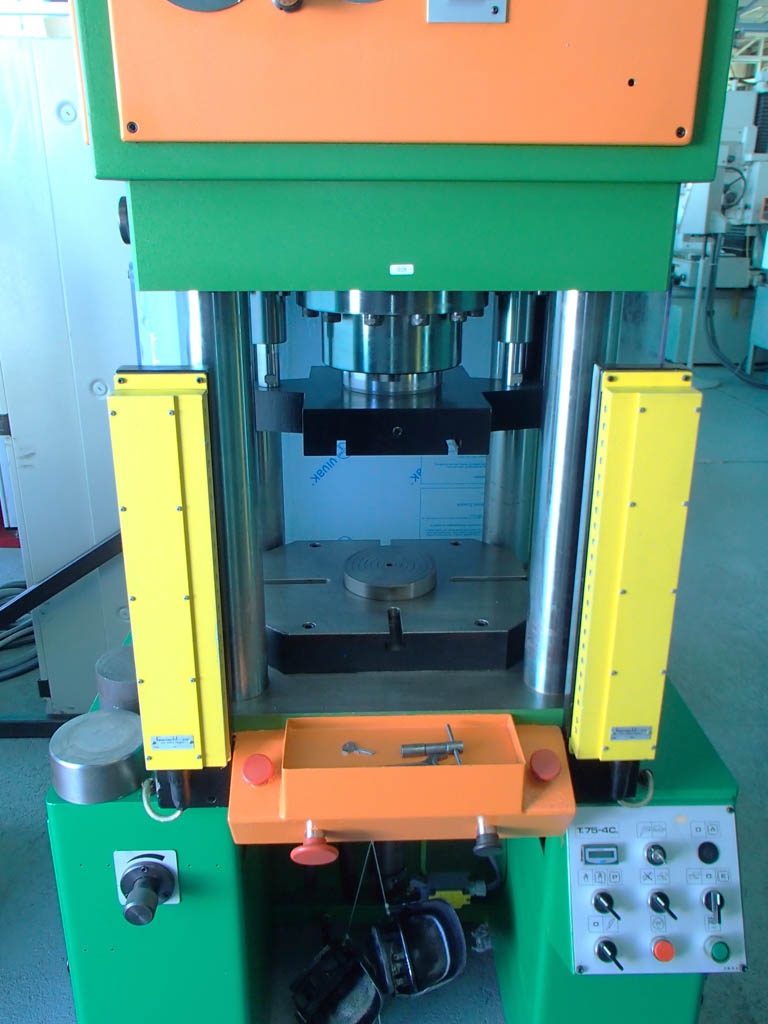

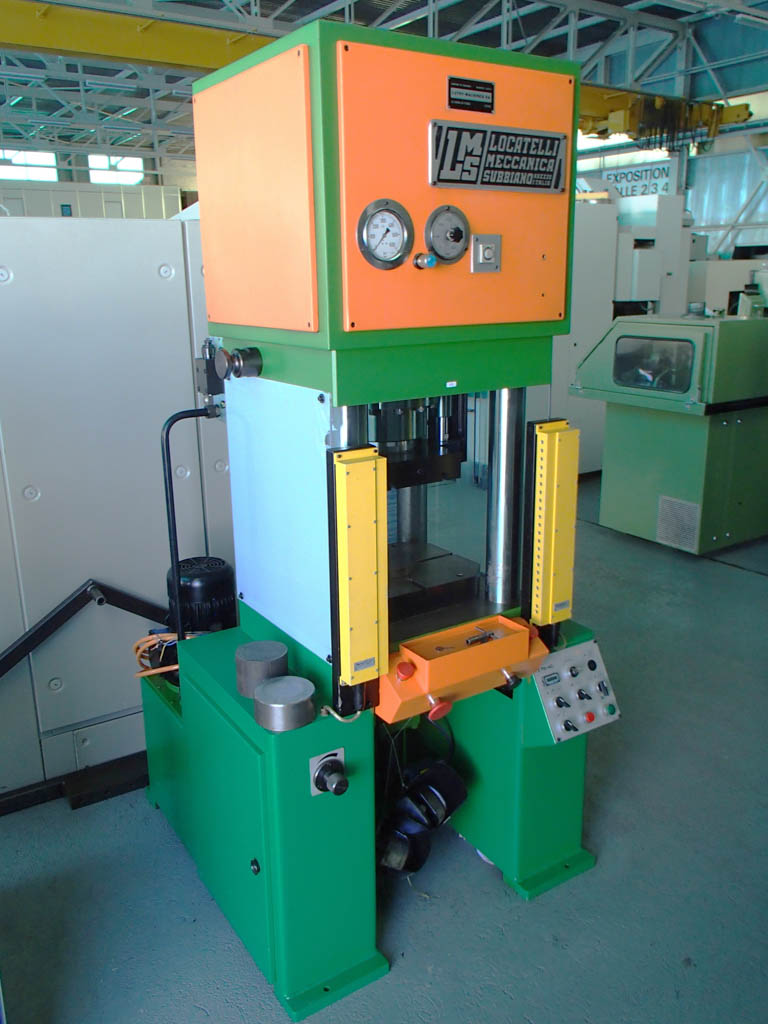

LOCATELLI T75-4C - Used machine

HYDRAULIC PRESS

Power 7,5 HP
Press power 75 tons
Frontal free space between columns : 360 mm
Lateral free space between columns : 320 mm
Working pressure 160 atm
Diameter of cylinder 160 mm
Oil tank capacity 150 kg
Cylinder quick speed 450 mm/s
Cylinder working speed 10 mm/s
Cylinder return speed 300 mm/s
Daylight between columns 370 mm
Cylinder stroke 150 mm
Distance cylinder-table 300 mm
Strokes/min. : with/without extractor 50/60
Sizes on floor 105 x 95 cm
Height 215 cm

COMPOSITION

Photo-cells protection FASTNACHT
Hydraulic extractor
Workpieces counter

Time delay
Instruction manual
