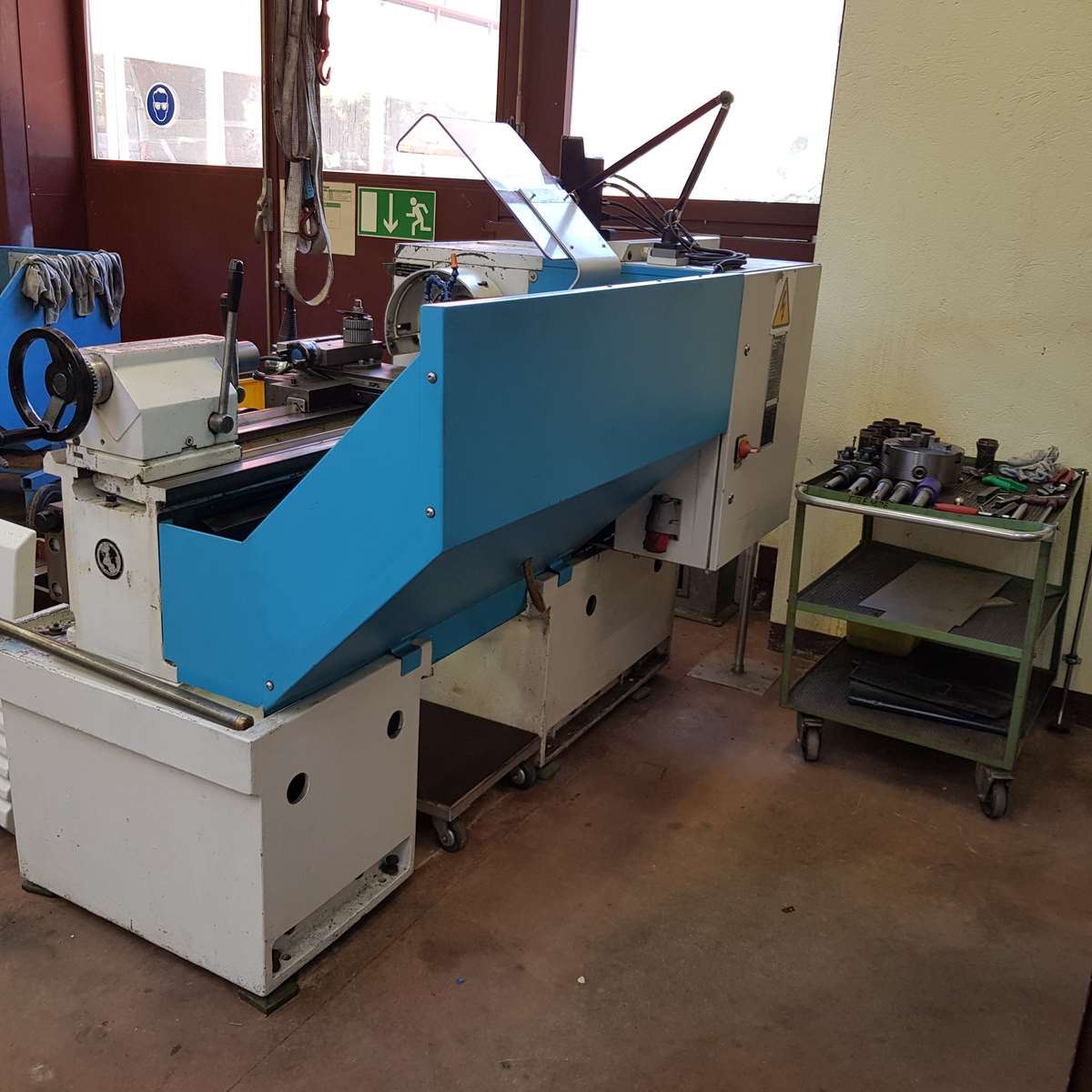

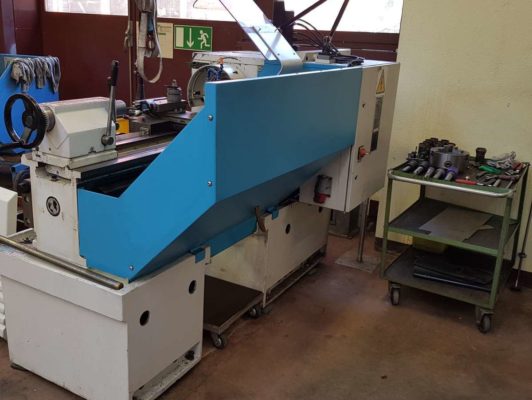

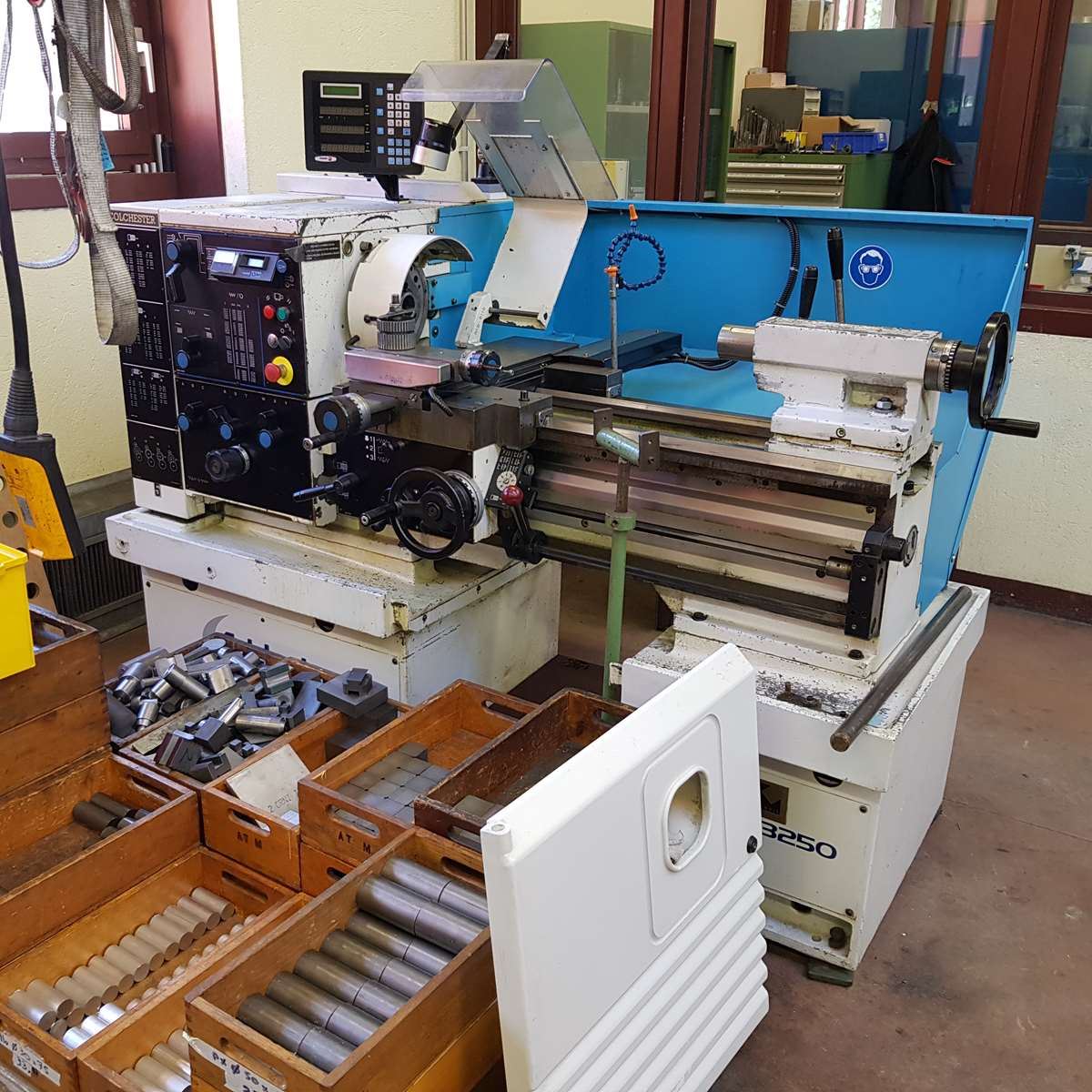

COLCHESTER MASTER - Used machine
SOLD
| Model | MASTER 3250 |
| Year | 2002 |
| Maximum swing over bed | 350 mm |
| Height of centers | 170 mm |
| Bench length | 1150 mm |
| Distance between centers | 650 mm |
| stroke of the transversal carriage | 130 mm |
| stroke of the longitudinal carriage | 90 mm |
| Spindle speed | 0 - 325 tr/ min RPM |
| Spindle taper | D1-4 Camlock |
| Power | 7.5 KW |
| Spindle diameter | 42 mm |
| Number of Metric threads | 51 |
| Metric threads | 0.2 à 14 mm |
| Number of module threads | 20 |
| Module threads | 0.2 à 3.5 mm |
| Tail stock taper | M4 |
| travel of the tailstock centre sleeve | 145 mm |
| Dimensions | 2000x1230x1600 mm |
| Weight | 1500 Kg |
Equipment :
– Lamp
– Multifix turret and tool holder
– 3 jaw and 4 jaw chuck

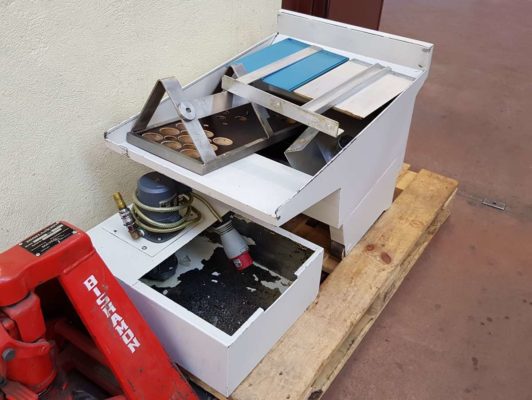

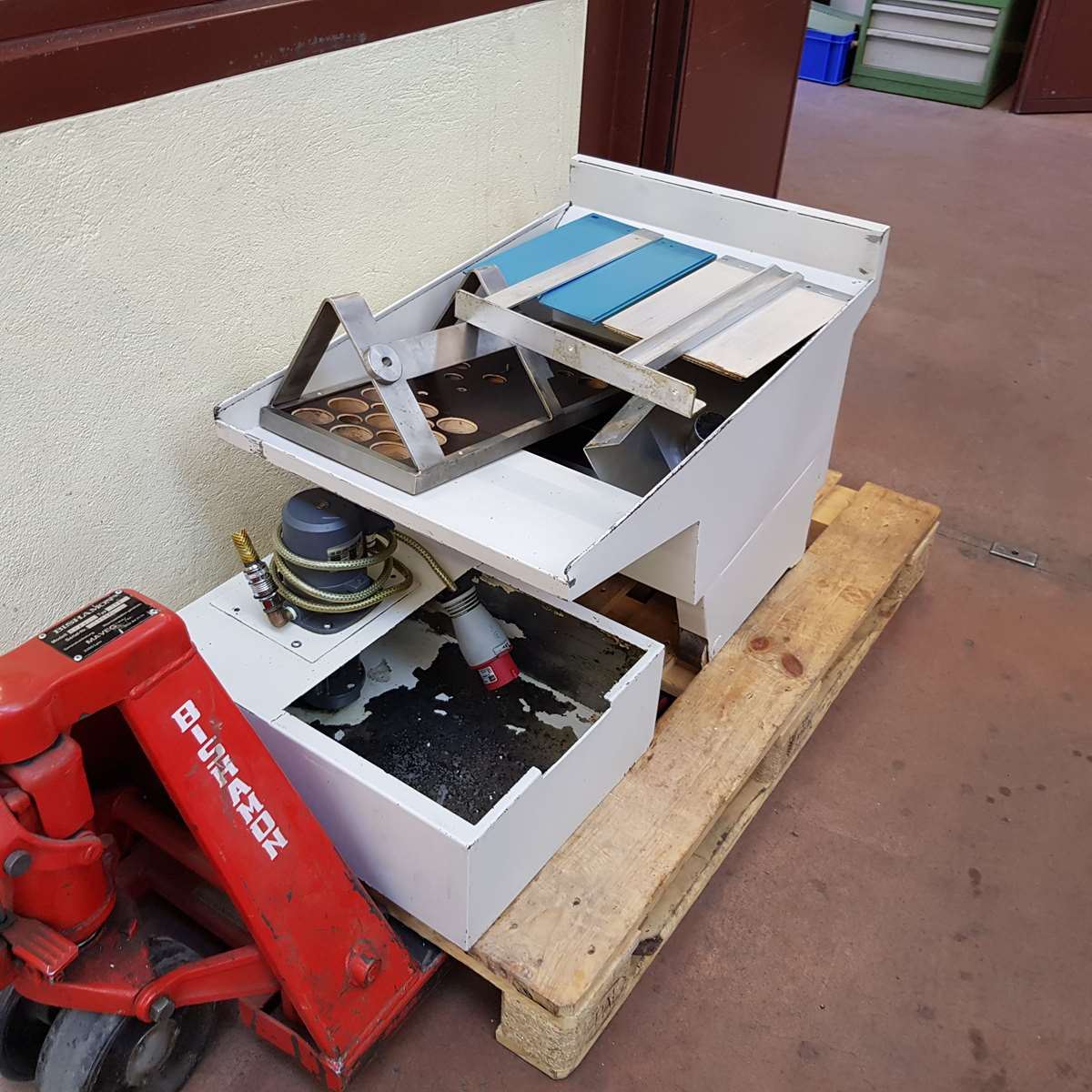

– Cooling system

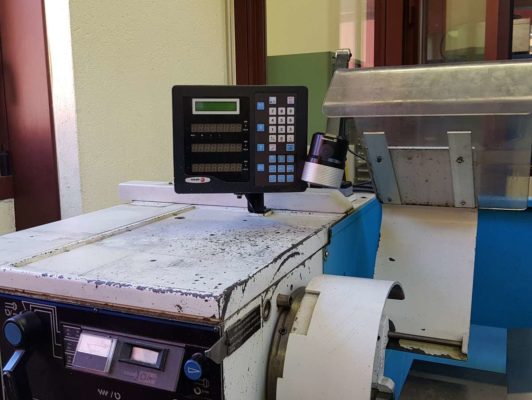

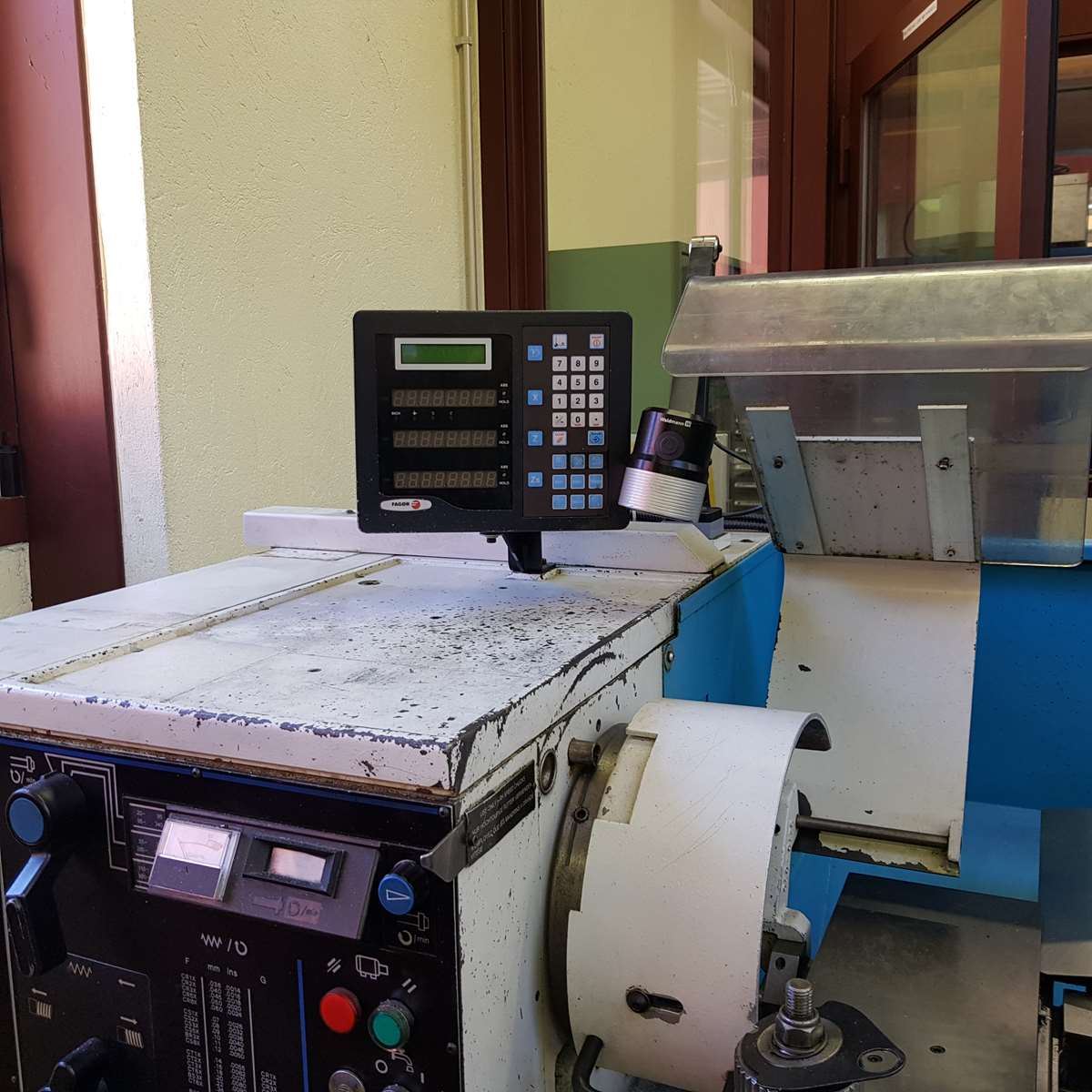

– 3 axis digital Read Out Fagor
