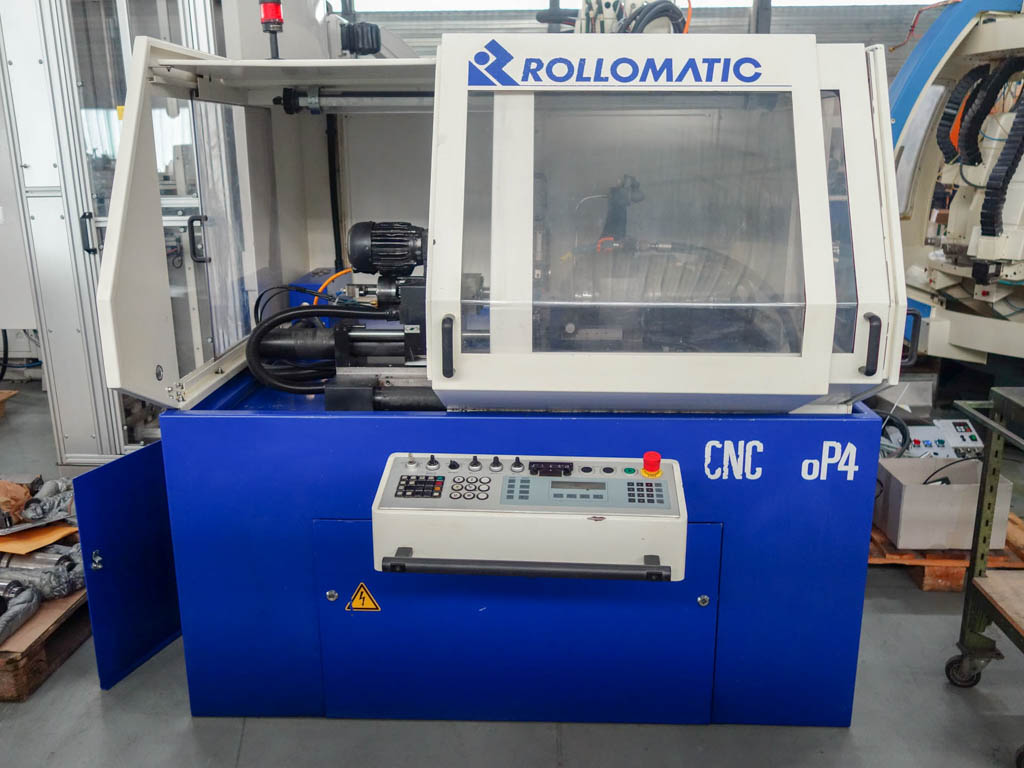

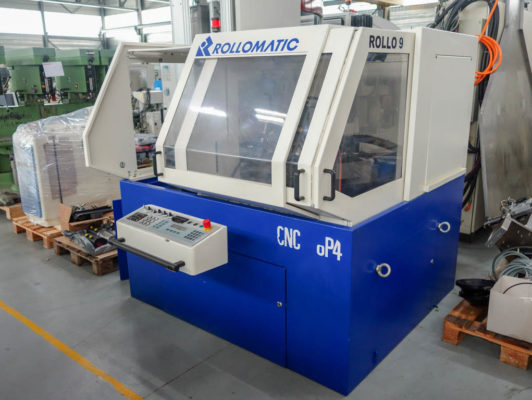

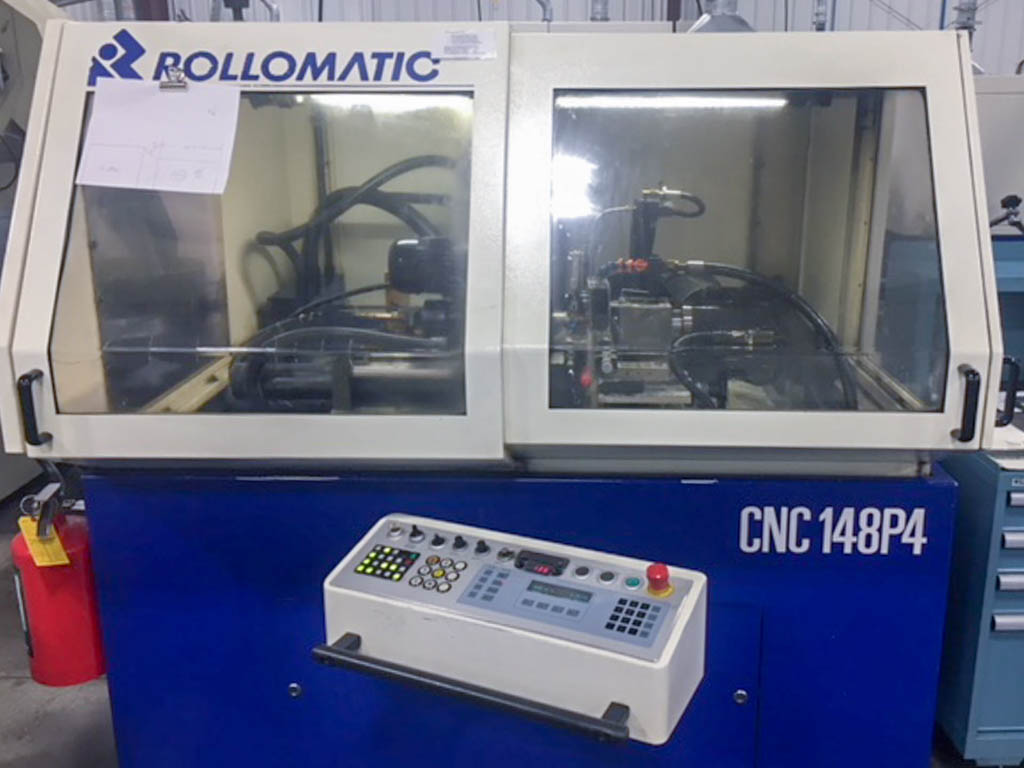

ROLLOMATIC CN148P4 - Used machine

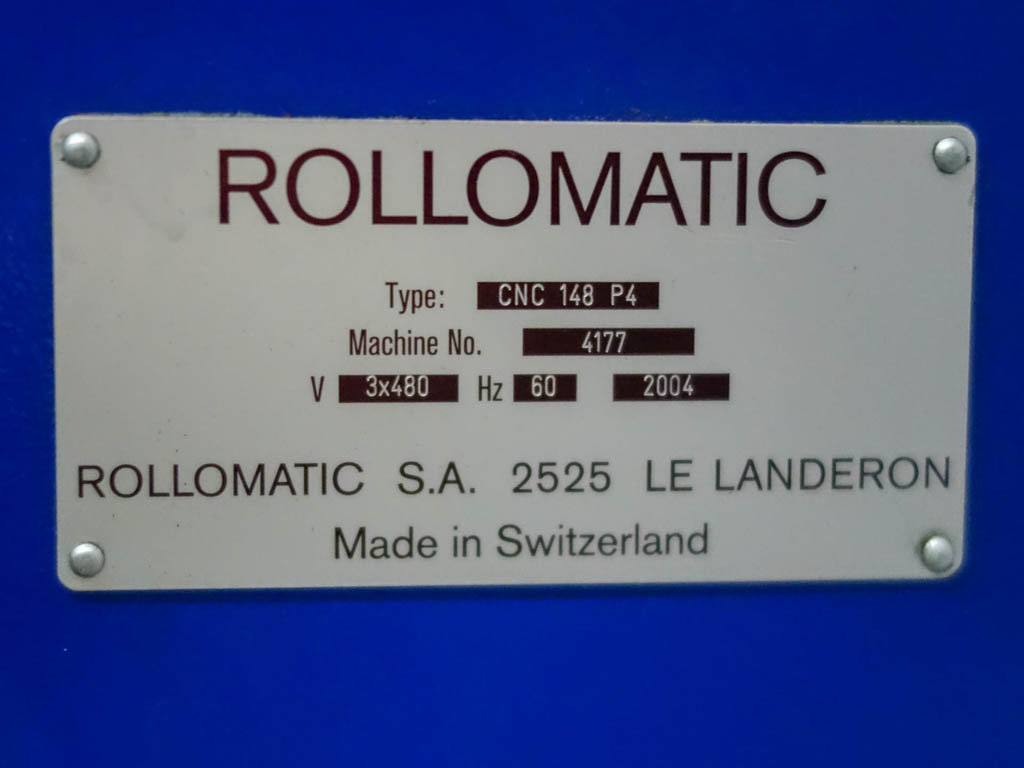

Model CNC 148 P4
Serial Number 4177
Year 2004
Grinding capacity Ø 0.025 -12.7 mm
Bar diameter Ø 1.0 - 12.7 mm
Grinding length 0 - 200 mm
Dimensions 1830 x 2040 x 2100 mm

CNC tool grinding machine

Clamping collets : W15 (Option W20)

Z axis Stroke : 35 mm
Resolution 0.5um
X axis Stroke : 25 mm
Resolution 0.1um
Y axis Stroke : 286 mm
Resolution 0.5um
U axis Stroke : 15 mm
Resolution 0.1um

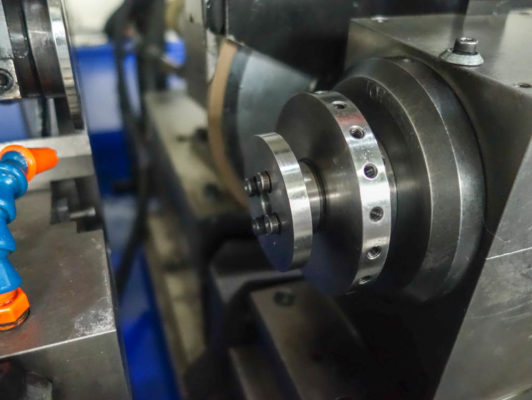

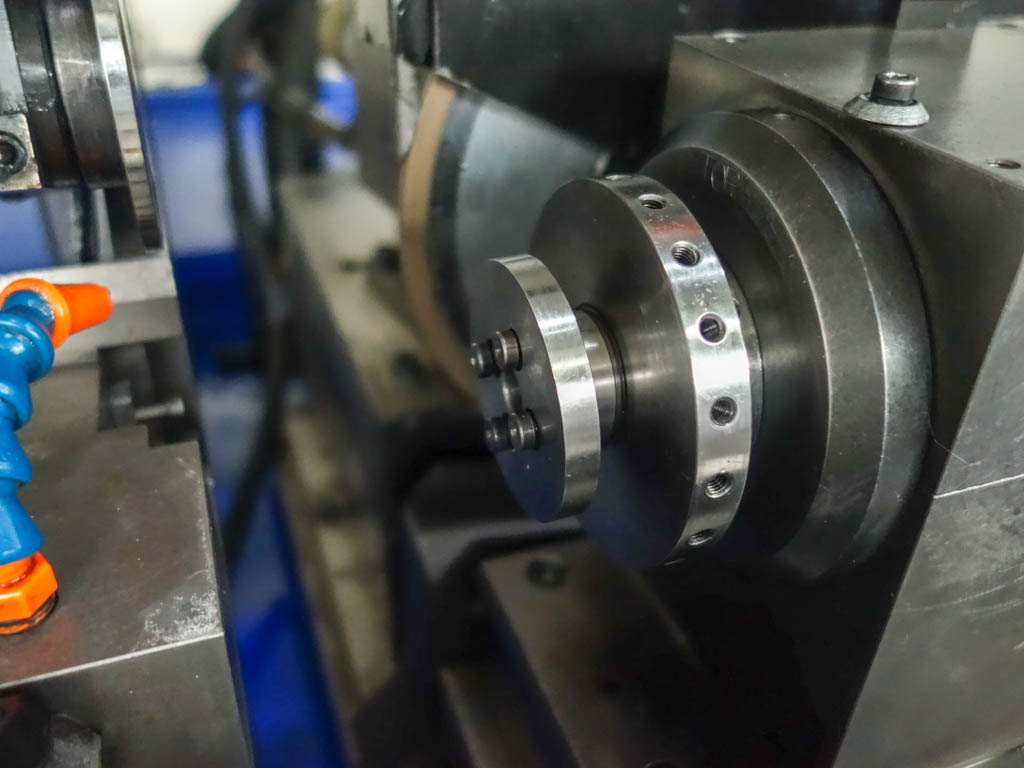

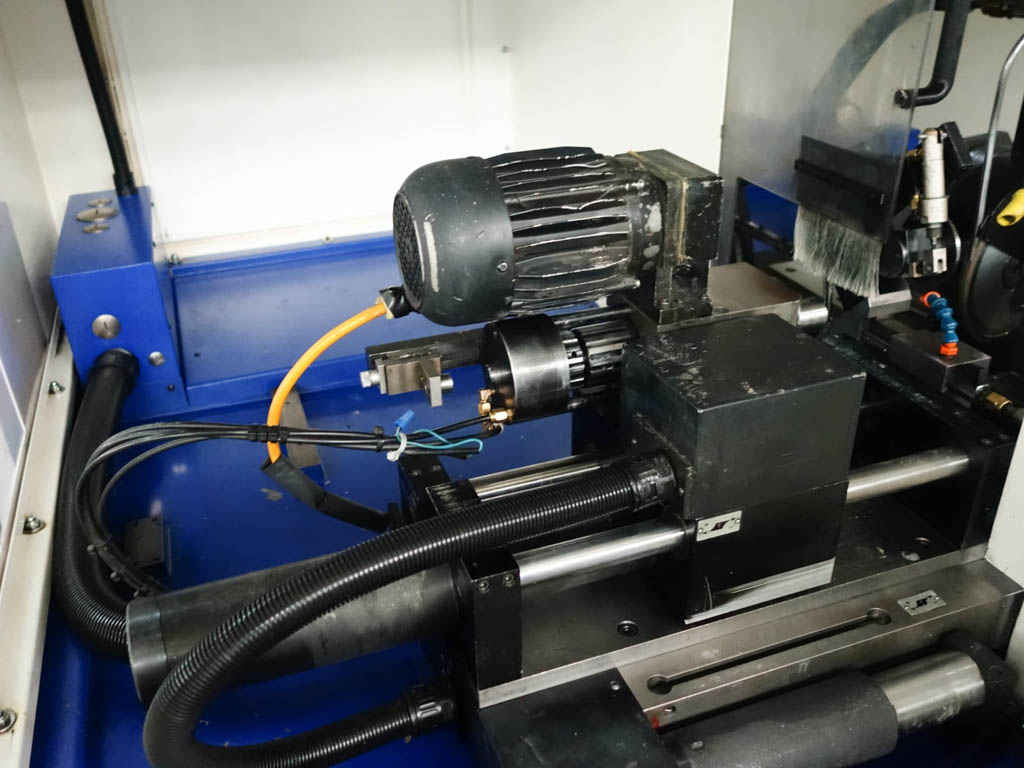

Workhead
Motor : 0.70 kW
Rotation : 300 3000 rpm

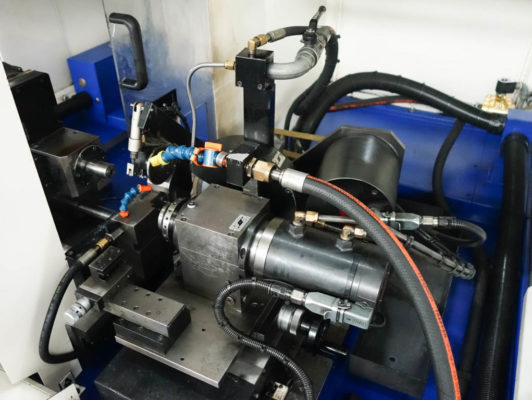

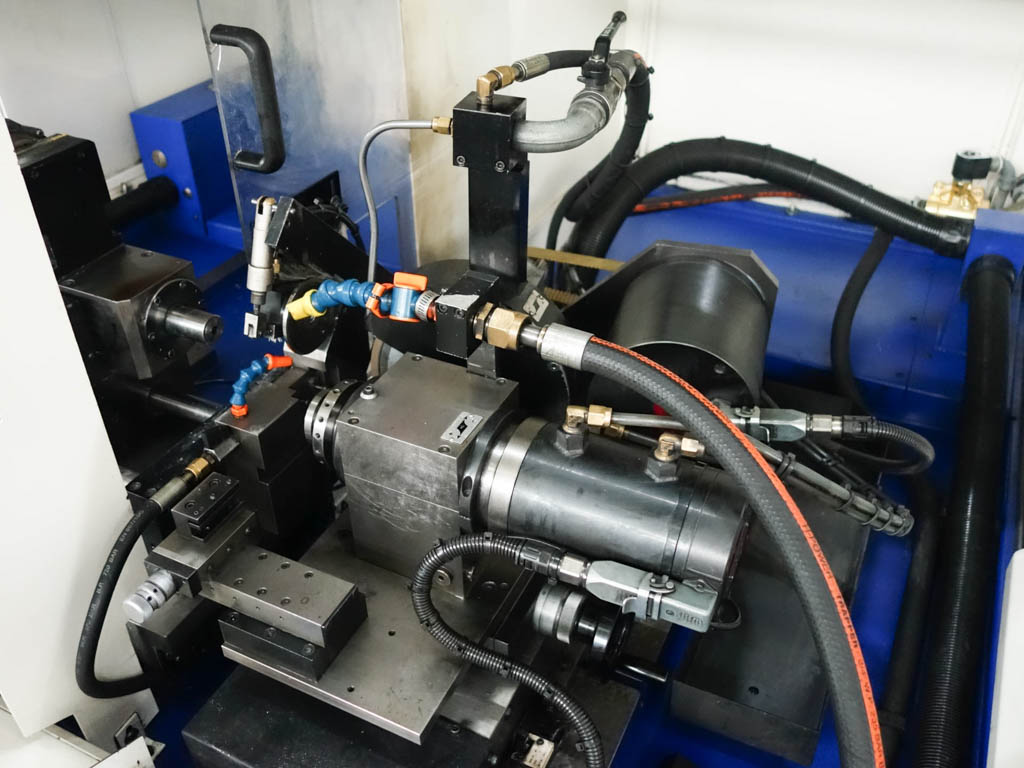

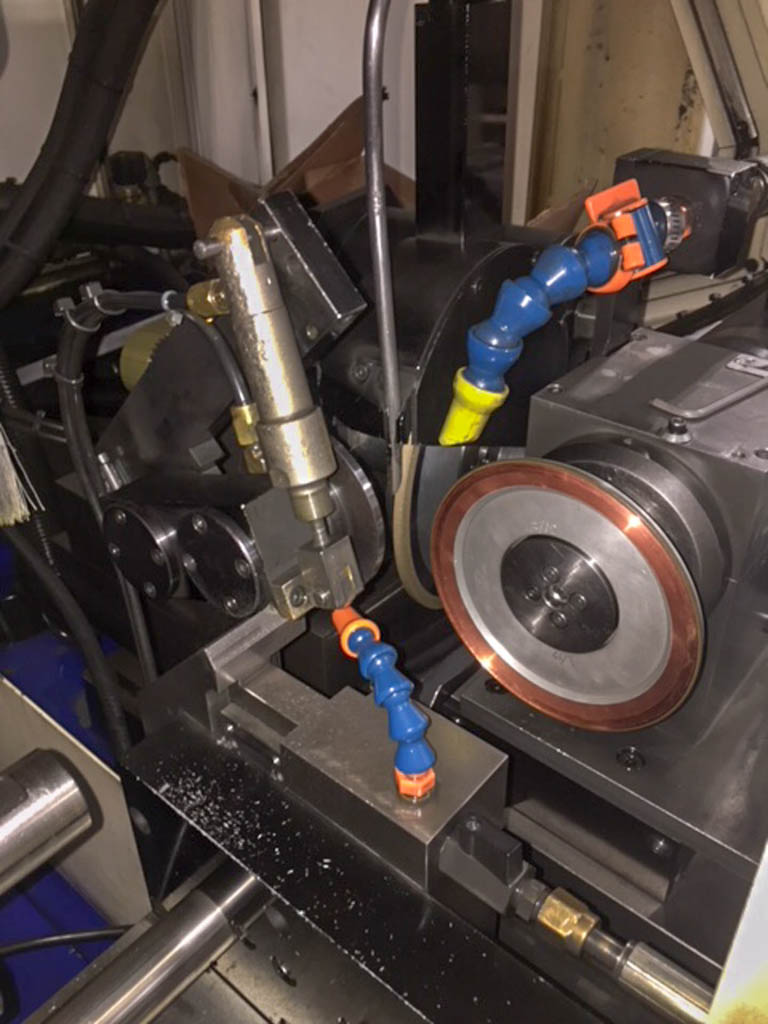

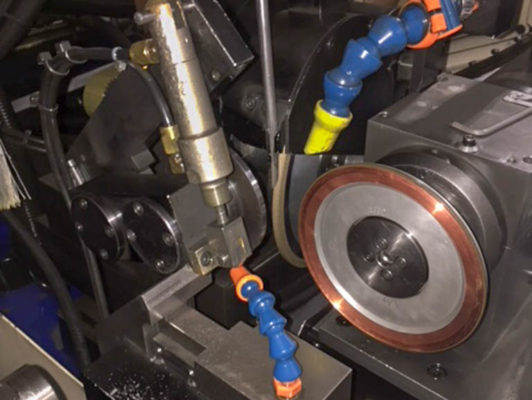

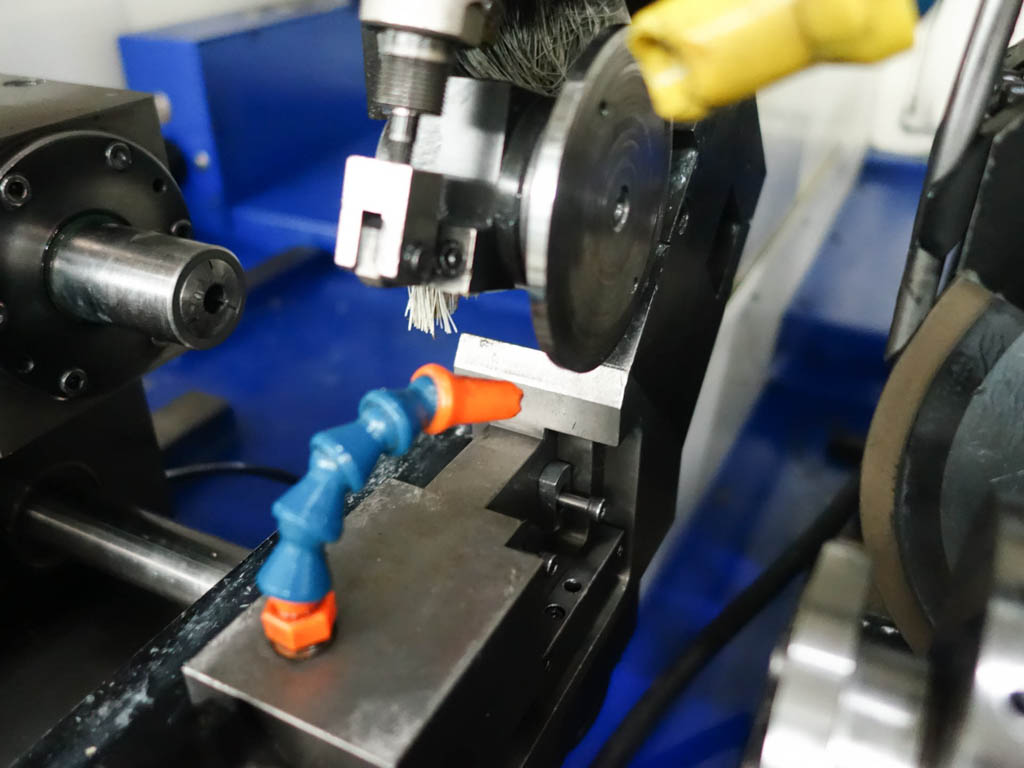

Grinding
Rough grinding motor : 1.5 kW
Spindle : Ø 60 mm
Grinding wheel : Ø 200 mm
Cutting speed : 30 m/sec.

Finish grinding motor : 0.75 kW
Spindle : Ø100 mm direct drive
Grinding wheel : Ø150 mm

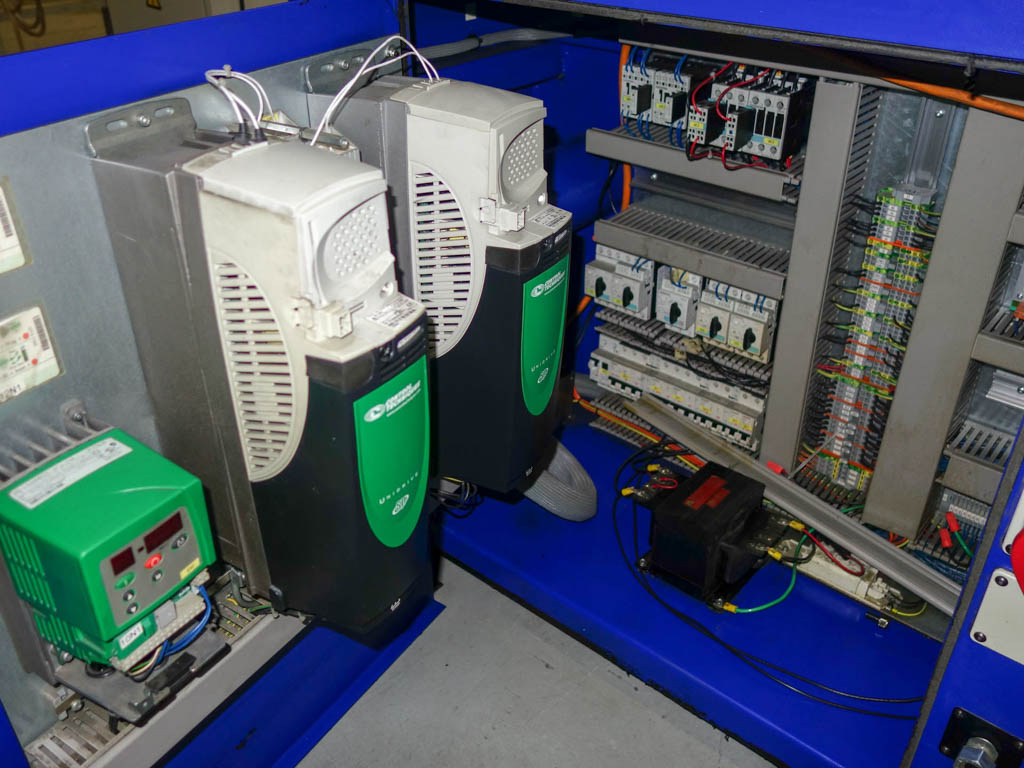

Cutting speed : Adjustable, frequency converter
Net weight : Approx. 1800 Kg

Manual loading
